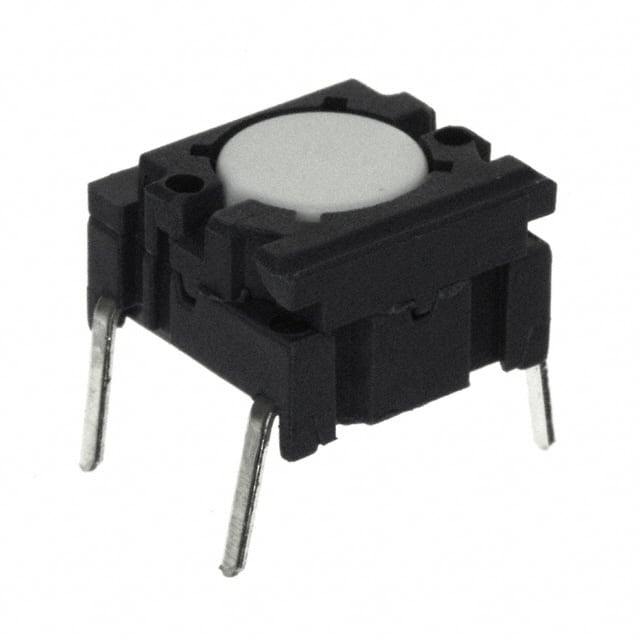

3ATL6 The MEC Switches 3ATL6 is a tactile switch with SPST-NO configuration, rated for 0.05A at 24VDC. It features IP67 sealing and Through Hole mounting.
Mfr Part #:

3ATL6

Available from 1 distributors
Mfr Name: MEC Switches
MEC Switches
The MEC Switches 3ATL6 is a tactile switch with SPST-NO configuration, rated for 0.05A at 24VDC. It features IP67 sealing and Through Hole mounting.
✓ Total Stock: 515 pcs
$ Price Range: $0.75

3ATL6 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
515 pcs
On Request
515 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3ATL6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Circuit
Contact Plating
Contact Rating @ Voltage
Features
Illumination
Ingress Protection
Lead Style
Mounting Type
Number of Positions
Operating Force
Operating Temperature
Outline
Switch Function
Temperature Range
Termination Style
View Similar Products (0)

3ATL6 Description

Short technical summary and product information.

The MEC Switches 3ATL6 is a tactile switch designed for reliable operation in electronic circuits. It features a Single Pole Single Throw Normally Open (SPST-NO) contact configuration, capable of handling 0.05A at 24VDC.



This switch offers robust environmental protection with an IP67 rating, making it dust-tight and waterproof. The mechanical durability is rated for 10,000,000 cycles, ensuring long-term performance. The operating temperature range is specified as -40°C to 115°C.



Designed for Through Hole mounting, the 3ATL6 has a termination style of PC Pin. Its dimensions are 10x10mm, with an actuator height of 6.40mm. The operating force is 300gf (2.5N). This non-illuminated switch is suitable for applications requiring a durable and sealed tactile input.



Key specifications include a contact rating of 0.05A @ 24VDC, a maximum contact resistance of 30mΩ, and a minimum insulation resistance of 0.1GΩ. The switch is RoHS3 Compliant and has an MSL rating of 1.

3ATL6 Quick Information

Product Type: Tactile Switch
Canonical Name: MEC Switches 3ATL6 Tactile Switch
Subcategory: TACT

3ATL6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3ATL6 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

3ATL6 Features

  • SPST-NO circuit configuration.
  • Rated for 0.05A at 24VDC.
  • IP67 dust-tight and waterproof sealing.
  • Through Hole mounting type.
  • 10 million cycle mechanical durability.

3ATL6 Applications

  • Suitable for sealed control panels.
  • Ideal for industrial equipment interfaces.
  • Used in harsh environment applications.
  • Provides reliable user input.
  • General purpose tactile switching needs.

3ATL6 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the contact rating for the MEC Switches 3ATL6?

The contact rating is 0.05A at 24VDC.

What is the operating temperature range of the 3ATL6 tactile switch?

The operating temperature range is -40°C to 115°C.

What is the ingress protection rating for this switch?

The ingress protection rating is IP67, meaning it is dust-tight and waterproof.

What type of mounting does the 3ATL6 switch use?

It uses Through Hole mounting.

What is the mechanical durability of the MEC Switches 3ATL6?

The mechanical durability is rated for 10,000,000 cycles.

What is the RoHS status of the 3ATL6?

The RoHS status is RoHS3 Compliant.
