| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Type | |
| Conductor Material | |
| Conductor Stranding | |
| Features | |
| Flame Retardance | |
| Flammability Rating | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Material | |
| Jacket (Insulation) Diameter | |
| Jacket (Insulation) Material | |
| Jacket Color | |
| Length | |
| Maximum Acceleration | |
| Maximum Travel Length | |
| Maximum Travel Speed | |
| Mechanical Rating | |
| Motion Rating | |
| Number of Conductors | |
| Oil Resistance | |
| REACH Compliance | |
| Ratings | |
| RoHS Compliance | |
| Shield Type | |
| Shielding Coverage | |
| Usage | |
| Voltage | |
| Wire Gauge | |
| minimum_bend_radius (Minimum @ Continuous Flexing) | |
| minimum_bend_radius (Minimum @ Installation) | |
| temperature_range (Minimum/Maximum @ Continuous Flexing) | |
| temperature_range (Minimum/Maximum @ Stationary Use) | |
| test_voltage (Nominal @ Conductor/Conductor) | |
| test_voltage (Nominal @ Conductor/Shield) |

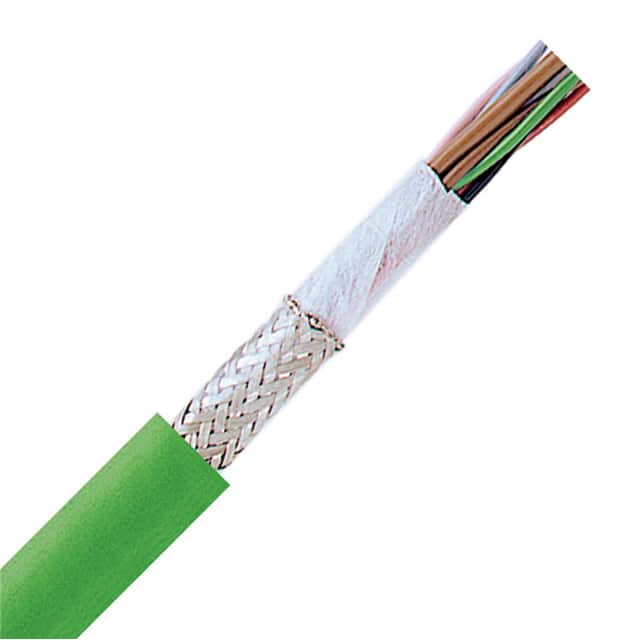

The LAPP 36916 is a multi-pair cable designed for industrial applications requiring flexible signal transmission. It features 14 conductors arranged as 6 twisted pairs plus 2 additional conductors, with stranding of 20 AWG and 24 AWG tinned copper. The cable is shielded with a tinned copper braid providing 85% coverage, and jacketed in a green polyurethane (PU) material.
Electrical ratings include a nominal voltage of 30V, with test voltages of 1500V conductor/conductor and 750V conductor/shield. The cable is rated for continuous flexing with a minimum bend radius of 7.5 times cable diameter, and for installation at 4 times cable diameter. Temperature range is -50°C to +80°C for stationary use and -40°C to +80°C for continuous flexing.
The cable is halogen-free, flame retardant (VW-1, FT1), oil resistant (OR-05), and abrasion resistant. It is UL Style 20236 and CSA AWM I/II A/B FT1 approved. Designed for high dynamic performance in cable chains, it supports acceleration up to 50 m/s², travel speed up to 5 m/s, and travel lengths up to 100 m.
The nominal voltage rating is 30V.
The temperature range for continuous flexing is -40°C to +80°C.
The cable is listed as RoHS3 Compliant, but this status is unverified.
The minimum bend radius for installation is 4 times the cable diameter.
The cable has a tinned copper braid shield with 85% coverage.
The conductors use extra fine wire stranding.
Yes, the cable is halogen-free as per the datasheet.
