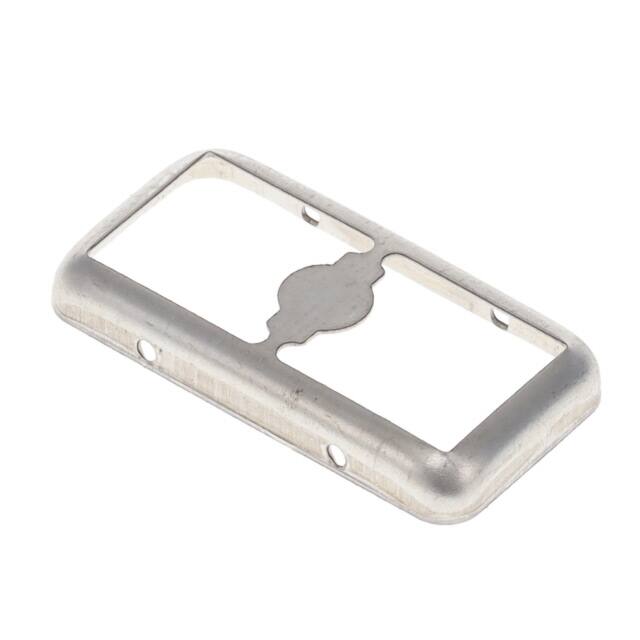

36702202 The Würth Elektronik 36702202 is a two-piece seamless shielding cabinet designed for RF applications. It offers a solder mounting type and operates within a temperature range of -40 to +125 °C.
Mfr Part #:

36702202

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The Würth Elektronik 36702202 is a two-piece seamless shielding cabinet designed for RF applications. It offers a solder mounting type and operates within a temperature range of -40 to +125 °C.
✓ Total Stock: 90 pcs
$ Price Range: $0.99

36702202 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
90 pcs
On Request
90 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

36702202 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
Height
Length
Mounting Type
Operating Temperature
Type
Width
View Similar Products (0)

36702202 Description

Short technical summary and product information.

This Würth Elektronik 36702202 is a two-piece seamless shielding cabinet, part of the WE-SHC series. It is designed for RF applications and features a solder mounting type.



The shield has a height of 2.80mm, a length of 11.30mm, and a width of 22.00mm. It is constructed with a steel core and tin plating.



Environmental compliance includes RoHS3 compliance, REACH unaffected status, and Moisture Sensitivity Level (MSL) 1. It also meets Halogen Free standards. The operating temperature range for this component is -40 to +125 °C.

36702202 Quick Information

Product Type: RF Shield
Canonical Name: Würth Elektronik 36702202 RF Shield
Subcategory: RF Shield

36702202 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

36702202 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

36702202 Features

  • Two-piece seamless shielding cabinet design.
  • Steel core with tin plating construction.
  • Solder mounting type for secure integration.
  • Wide operating temperature range: -40 to +125 °C.
  • RoHS3 compliant and Halogen Free.

36702202 Applications

  • Used in RF and RFID device shielding
  • Suitable for EMI mitigation in electronics
  • Ideal for confined space applications
  • Supports industrial and consumer electronics

36702202 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the 36702202 RF Shield?

The operating temperature range is -40 to +125 °C.

What are the dimensions of the 36702202 RF Shield?

The dimensions are 2.80mm height, 11.30mm length, and 22.00mm width.

What is the mounting type for the 36702202 RF Shield?

The mounting type is Solder.

Is the 36702202 RF Shield RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the 36702202 RF Shield?

The MSL is 1.
