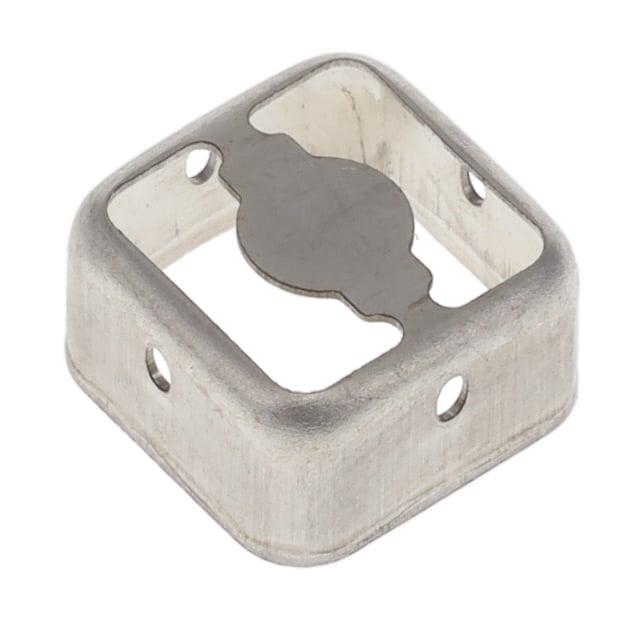

3670093 The Würth Elektronik 3670093 is an RF Shield Frame designed for solder mounting. It features dimensions of 9.30mm x 9.30mm x 5.00mm.
Mfr Part #:

3670093

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The Würth Elektronik 3670093 is an RF Shield Frame designed for solder mounting. It features dimensions of 9.30mm x 9.30mm x 5.00mm.
✓ Total Stock: 40 pcs
$ Price Range: $0.99

3670093 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3670093 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Length
Mounting Type
Type
Width
View Similar Products (0)

3670093 Description

Short technical summary and product information.

This Würth Elektronik 3670093 is a two-piece seamless RF Shield Frame. It is designed for solder mounting and has overall dimensions of 9.30mm in length and width, with a height of 5.00mm.



The shield is supplied in trays with a standard quantity of 180 pieces. It is specified as RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. The REACH status is listed as Unaffected.



This component is suitable for applications requiring electromagnetic shielding. Its frame construction and solderable mounting type ensure secure integration into electronic assemblies.

3670093 Quick Information

Product Type: RF Shield
Canonical Name: Würth Elektronik 3670093 RF Shield Frame
Subcategory: RF Shields

3670093 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3670093 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

3670093 Features

  • Two-piece seamless RF shield frame.
  • Designed for solder mounting.
  • Dimensions: 9.30mm x 9.30mm x 5.00mm.
  • Supplied in trays of 180 units.
  • RoHS3 Compliant.

3670093 Applications

  • Provides essential RF shielding.
  • Suitable for PCB assemblies.
  • Used in electronic enclosures.
  • Integrates with signal paths.

3670093 FAQs

3 frequently asked questions generated from this part’s specifications.
What are the dimensions of the Würth Elektronik 3670093 RF Shield?

The dimensions are 9.30mm in length, 9.30mm in width, and 5.00mm in height.

How is the Würth Elektronik 3670093 RF Shield mounted?

This RF shield is designed for solder mounting.

What is the standard quantity for the 3670093 RF Shield?

The standard quantity is 180 units per tray.
