Mfr Part #:

35RAPC3BH3

Name: 35RAPC3BH3
SKU: 35RAPC3BH3

Mfr Name: Conxall/Switchcraft

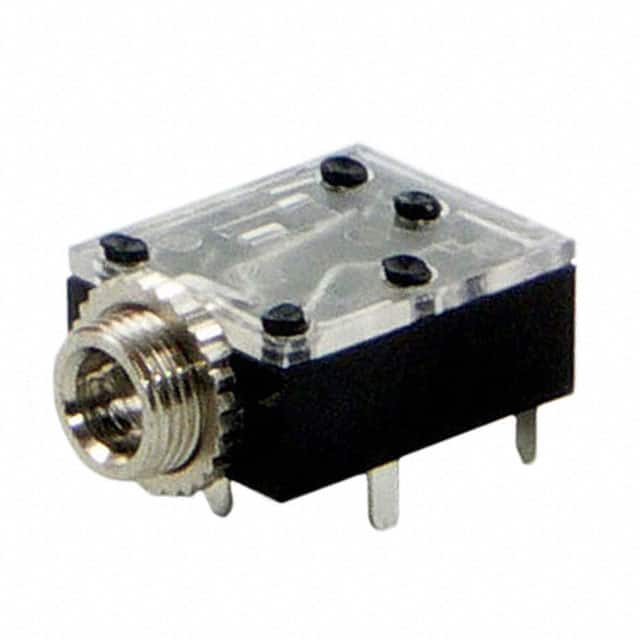

CONN JACK STEREO 3.5MM R/A

Stock on Request

35RAPC3BH3 Description

Short technical summary and product information.

CONN JACK STEREO 3.5MM R/A

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

SJ1-3534

CUI Devices

3.5mm stereo phone jack, female, right angle, panel mount, through hole, solder termination, single switch, unshielded.

35RAPC3BV4

Conxall/Switchcraft

CONN JACK STEREO 3.5MM R/A

Account

Category	Audio Connectors
Manufacturer Name	Conxall/Switchcraft
Actual Diameter	0.142" (3.60mm)
Connector Type	Phone Jack
Features	Mounting Hardware, Thread Lock
Gender	Female
Industry Recognized Mating Diameter	3.50mm (0.141", 1/8", Mini Plug) - Headphone
Internal Switch(s)	Single Switch
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	3 Conductors, 4 Contacts
Shielding	Unshielded
Signal Lines	Stereo (3 Conductor, TRS)
Termination	Solder
