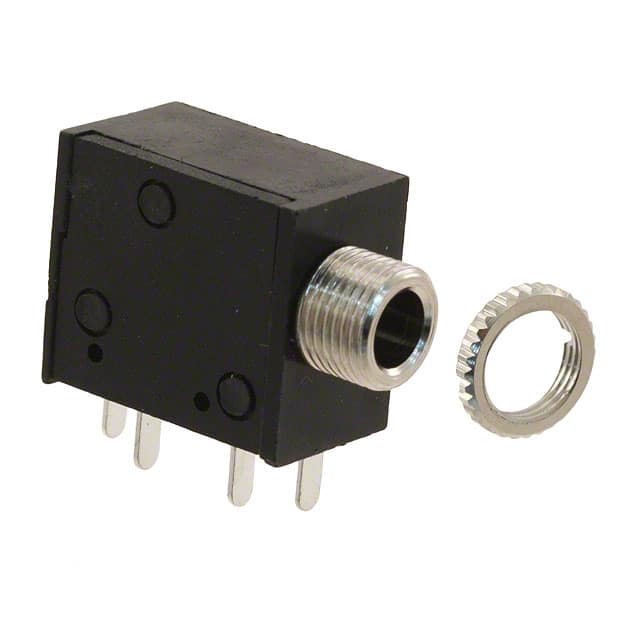

The SJ1-3534 is a 3.5mm stereo phone jack from CUI Devices. It is a female connector with 3 conductors and 4 contacts, supporting stereo (TRS) signals. The jack features a single internal switch and is designed for panel mount and through hole mounting with a right angle orientation. Termination is via solder terminals.
Electrical ratings include a maximum input voltage of 12 Vdc and a maximum input current of 1 A. Contact resistance is 50 mΩ maximum between terminal and mating plug, and 30 mΩ maximum between terminals in a closed circuit. Insulation resistance is 100 MΩ minimum at 500 Vdc, and the connector withstands 500 Vac for 1 minute.
The housing and cover are made of PBT with UL94V-0 flammability rating. The bushing is copper alloy (H59) with nickel plating, terminals are brass with silver plating, and springs are stainless steel. The nut is HPB59-3 with nickel plating. The connector is unshielded and includes mounting hardware with thread lock. Operating temperature range is -25°C to 85°C, and the rated life is 5,000 cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.18 | $2.18 |
| 10+ | $1.85 | $1.85 |
| 25+ | $1.74 | $1.74 |
| 50+ | $1.65 | $1.65 |
| 100+ | $1.58 | $1.58 |
| 300+ | $1.46 | $1.46 |
| 500+ | $1.41 | $1.41 |
| 1,000+ | $1.34 | $1.34 |
| 2,500+ | $1.26 | $1.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The industry recognized mating diameter is 3.50mm (1/8", mini plug).
It has 3 conductors and 4 contacts.
Panel mount, through hole, right angle.
Maximum rated input voltage is 12 Vdc and maximum rated input current is 1 A.
-25°C to 85°C.
UL94V-0.
5,000 cycles minimum.
