89134-0001
3M Electronic Solutions
3M 89134-0001 is a 34-position IDC ribbon cable socket with gold contacts. It features a 2.54mm pitch, free hanging mounting, and accommodates 26-28 AWG ribbon cable.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
115 pcs
|
115 pcs | On Request | 1 | On Request | On Request | 2013 | On Request | On Request | |
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

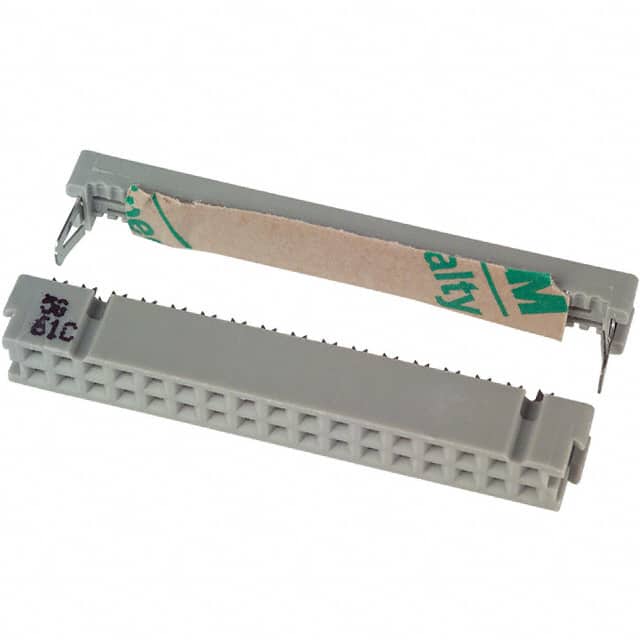

The 3M 3414-6000 is a 34 position IDC receptacle designed for use with 26-28 AWG ribbon cable. It features a gray housing with a feed-through design and gold-plated female socket contacts with a thickness of 30.0µin (0.76µm). The connector has a 2.54mm (0.100") pitch and 0.100" (2.54mm) row spacing, arranged in 2 rows. It is terminated via IDC (Insulation Displacement Connection) and is intended for free hanging (in-line) mounting. This connector is part of the 3M 3000 series and is suitable for applications requiring reliable, mass-terminated cable-to-board connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.65 | $7.65 |
| 10+ | $6.50 | $6.50 |
| 25+ | $6.09 | $6.09 |
| 50+ | $5.80 | $5.80 |
| 100+ | $5.52 | $5.52 |
| 300+ | $5.11 | $5.11 |
| 600+ | $4.87 | $4.87 |
| 1,200+ | $4.64 | $4.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Receptacle with female socket contacts.
34 positions arranged in 2 rows.
2.54mm (0.100") with 0.100" (2.54mm) row spacing.
Free hanging (in-line) with IDC termination.
26-28 AWG ribbon cable.
Gold with 30.0µin (0.76µm) thickness.
