| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Features | |
| Flammability Rating | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| UL | |
| Wire Gauge | |
| Wire Type | |
| Withstanding Voltage |

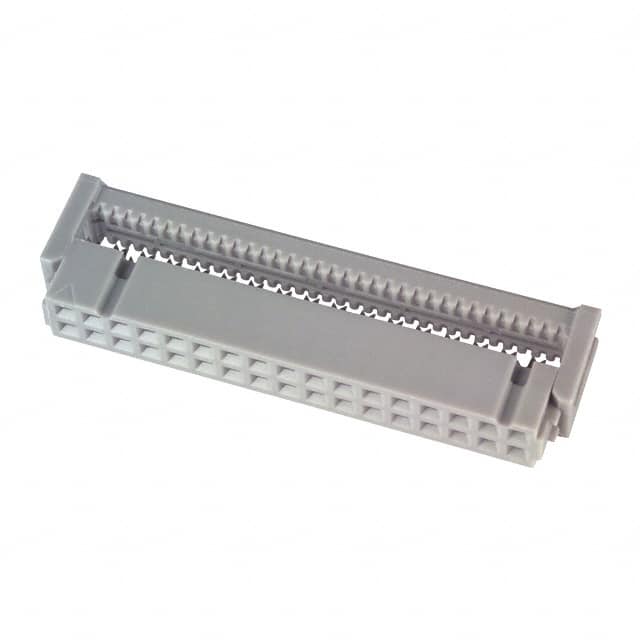

The 3M 89134-0001 is a 34-position IDC ribbon cable socket from the 891 series. It is designed for terminating 0.050" pitch ribbon cable using insulation displacement contacts (IDC), providing a reliable and quick connection without wire stripping. The connector features a 2.54mm (0.100") pitch and 0.100" row spacing, with a gray glass-filled polyester (PBT) housing rated UL94 V-0 for flammability. Contacts are phosphor bronze with a 30µin gold plating over nickel, ensuring low contact resistance and corrosion resistance. The socket is free hanging (in-line) mounting style, suitable for cable-to-board or cable-to-cable applications. It supports 26 to 28 AWG stranded wire and is rated for 3A per contact (28 AWG, single line powered) with a withstanding voltage of 1000V RMS at sea level. The feed-through design allows daisy-chaining multiple connectors. This socket is UL recognized (File No. E68080) and is commonly used in internal wiring, data transmission, and industrial control systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.48 | $2.48 |
| 10+ | $2.11 | $2.11 |
| 25+ | $1.98 | $1.98 |
| 50+ | $1.88 | $1.88 |
| 100+ | $1.79 | $1.79 |
| 250+ | $1.68 | $1.68 |
| 500+ | $1.60 | $1.60 |
| 1,000+ | $1.52 | $1.52 |
| 2,500+ | $1.43 | $1.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 34 positions arranged in 2 rows with a 2.54mm pitch.
The pitch is 2.54mm (0.100") with row spacing also 2.54mm (0.100").
The current rating is 3A for 28 AWG wire with one line powered, and 3.5A for 26 AWG, as tested per EIA-364-070 with 20% derating. Derating applies for multiple adjacent lines.
The withstanding voltage is 1000V RMS at sea level.
It is a free hanging (in-line) connector, designed for cable-to-board or cable-to-cable connections.
It supports 26-28 AWG stranded ribbon cable.
Yes, the insulation material is UL94 V-0 rated glass-filled polyester (PBT).
