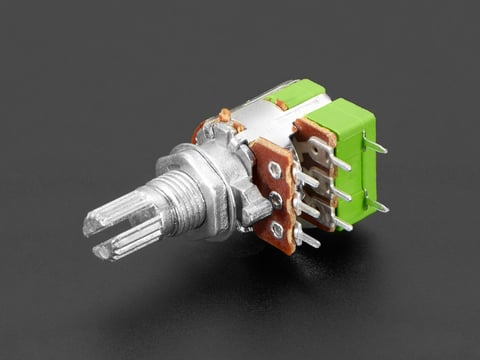

The Adafruit Industries LLC 3393 is a versatile panel mount potentiometer featuring a dual linear taper 10K ohm resistance. It includes an integrated on-off switch activated at the beginning of the shaft's rotation. The potentiometer has a grippy shaft that is smooth and easy to turn, but stable enough not to shift unintentionally.
With a 16mm body, this potentiometer offers 300° of rotational travel and a static stop strength of 90 oz-in. The rotational torque is specified between 0.5 to 1.25 oz-in. Its dimensions are 32.0mm x 20.0mm x 14.0mm, weighing 7.6g. The pins are spaced approximately 0.15 inches apart, making it unsuitable for breadboarding directly; soldering wires or designing a custom PCB is recommended. Once mounted in a project box using the included washer and hex nut, it provides reliable control and switching functionality.
This component is designed for panel mounting, allowing for a clean installation in project enclosures. It is suitable for applications requiring variable resistance control along with a power on/off function. The dual-ganged nature of the potentiometer allows for simultaneous control of two circuits or parameters.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10K ohms (10,000 ohms) with linear taper.
Linear taper.
Yes, it has an integrated on/off switch.
100,000 cycles.
16mm diameter body.
300°.
Panel mount.
