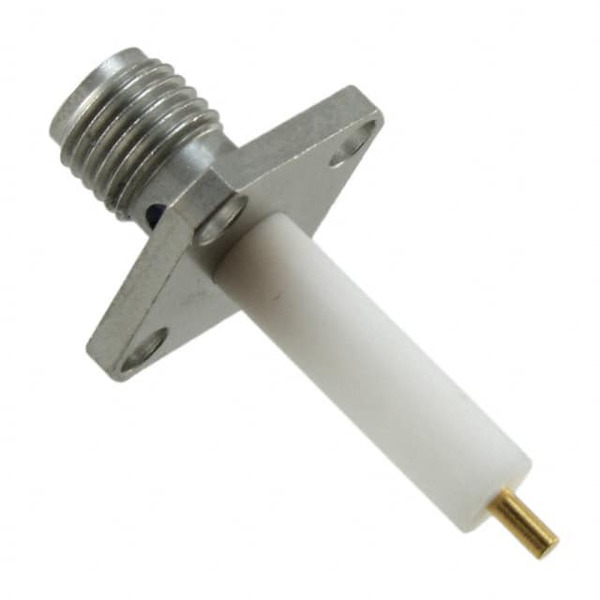

1051DS-DB Lucent 1051DS-DB is an SMA receptacle connector with a female socket, rated for 50 Ohm impedance and up to 18 GHz. It features a panel mount design and a stainless steel body.
Mfr Part #:

1051DS-DB

Available from 1 distributors
Mfr Name: Lucent
Lucent
Lucent 1051DS-DB is an SMA receptacle connector with a female socket, rated for 50 Ohm impedance and up to 18 GHz. It features a panel mount design and a stainless steel body.
✓ Total Stock: 100,000 pcs
$ Price Range: $0.99

1051DS-DB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
100,000 pcs
On Request
100000 pcs On Request 1 On Request On Request 0210+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1051DS-DB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Body Material
Center Contact Material
Center Contact Plating
Connector Style
Connector Type
Dielectric Material
Impedance
Mating Cycles
Mounting Type
Number of Ports
Operating Temperature
Voltage Rating
View Similar Products (0)

1051DS-DB Description

Short technical summary and product information.

The 1051DS-DB from Lucent is an SMA receptacle connector designed for high-frequency applications up to 18 GHz. It features a 50 Ohm impedance, making it suitable for RF systems requiring matched impedance.



This connector is panel mountable and provides a durable stainless steel body with a gold-plated beryllium copper center contact. The dielectric material is PTFE for reliable performance.



With 500 mating cycles and an operating temperature range of -65°C to 125°C, it is robust for demanding environments. It has a single port with a female socket configuration.

1051DS-DB Quick Information

Product Type: SMA Receptacle Connector
Canonical Name: Lucent 1051DS-DB SMA Receptacle Connector
Subcategory: Panel Mount SMA Receptacles

1051DS-DB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1051DS-DB Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

1051DS-DB Features

  • 18 GHz maximum operating frequency.
  • 50 Ohm impedance rating.
  • Panel mount installation style.
  • 500 mating cycles durability.
  • Gold-plated beryllium copper contact.

1051DS-DB Applications

  • High-frequency RF signal transmission.
  • Test measurement equipment.
  • Aerospace and defense communication systems.
  • Telecommunications base stations.
  • Antenna feed networks.

1051DS-DB FAQs

7 frequently asked questions generated from this part’s specifications.
What is the frequency range of the 1051DS-DB connector?

Up to 18 GHz.

What is the impedance of the 1051DS-DB?

50 Ohm.

What voltage rating does the connector have?

335 V.

What is the operating temperature range?

-65°C to 125°C.

How many mating cycles can the connector withstand?

500 cycles.

What is the connector style?

SMA.

What is the mounting type?

Panel Mount.
