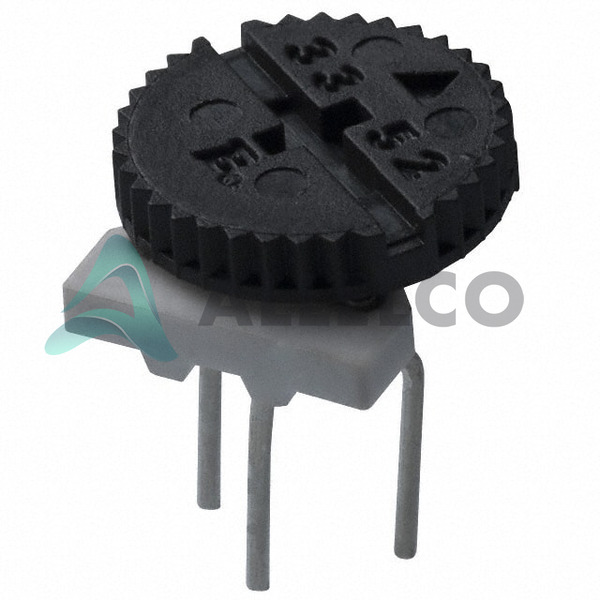

3352P-1-104LF The Bourns 3352P-1-104LF is a single-turn, cermet trimming potentiometer with a resistance of 100 kΩ and a tolerance of ±20%. It features a low profile and top adjustment.
Mfr Part #:

3352P-1-104LF

Available from 1 distributors
Mfr Name: Bourns
Bourns
The Bourns 3352P-1-104LF is a single-turn, cermet trimming potentiometer with a resistance of 100 kΩ and a tolerance of ±20%. It features a low profile and top adjustment.
✓ Total Stock: 1 pcs
$ Price Range: $0.05

3352P-1-104LF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3352P-1-104LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Lead Style
Mounting Type
Number of Turns
Power (Watts)
Resistance
Resistance Tolerance
Resolution
Temperature Range
Termination
Termination Style
Tolerance
View Similar Products (0)

3352P-1-104LF Description

Short technical summary and product information.

The Bourns 3352P-1-104LF is a 3/8" round trimming potentiometer from the 3352 series, designed for industrial applications. It utilizes a stable cermet element for infinite resolution and offers a standard resistance range of 10 to 2 megohms, with this specific unit rated at 100 kΩ.



This single-turn potentiometer has a power rating of 0.5W at 85°C and operates within a temperature range of -55°C to +125°C. Key electrical characteristics include a ±20% resistance tolerance and a contact resistance variation of 1.0% or 1 ohm maximum. The adjustment angle is 205° nominal.



Designed for through-hole mounting with PC pin termination, the 3352P-1-104LF has a compact size of 0.350" diameter by 0.210" height. It is RoHS compliant and has an MSL 1 rating. Environmental testing includes resistance to vibration (30G) and shock (100G).



This model is suitable for various trimmer applications requiring precise resistance adjustments in a small form factor.

3352P-1-104LF Quick Information

Product Type: Trimming Potentiometer
Series: 3352
Canonical Name: Bourns 3352P Series Single-Turn Cermet Trimming Potentiometer
Subcategory: Thumbwheel Potentiometers

3352P-1-104LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3352P-1-104LF Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

3352P-1-104LF Features

  • Single-turn cermet trimming potentiometer.
  • 100 kΩ resistance with ±20% tolerance.
  • 0.5W power rating at 85°C.
  • Through hole mounting with PC pins.
  • Wide operating temperature range.

3352P-1-104LF Applications

  • Ideal for general purpose circuit trimming.
  • Used in industrial control systems.
  • Suitable for test and measurement equipment.
  • Applicable in power supply adjustments.

3352P-1-104LF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance of the Bourns 3352P-1-104LF?

The resistance of the Bourns 3352P-1-104LF is 100 kΩ.

What is the tolerance for the 3352P-1-104LF potentiometer?

The tolerance for the 3352P-1-104LF potentiometer is ±20%.

What is the power rating of the 3352P-1-104LF at 85°C?

The power rating of the 3352P-1-104LF at 85°C is 0.5W.

What is the operating temperature range for this Bourns trimmer potentiometer?

The operating temperature range for this Bourns trimmer potentiometer is -55°C to +125°C.

How is the Bourns 3352P-1-104LF mounted?

The Bourns 3352P-1-104LF is mounted using the through-hole method.

What type of adjustment does the 3352P-1-104LF offer?

The 3352P-1-104LF offers top adjustment.

What is the resolution of the 3352P-1-104LF trimming potentiometer?

The 3352P-1-104LF trimming potentiometer offers infinite resolution.
