| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Insulation Material | |
| Lead Style | |
| Length | |
| Metallic Sleeve Material | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Plating | |
| Stud | |
| Terminal Body Material | |
| Terminal Type | |
| Termination | |
| Thickness | |
| Width | |
| Wire Gauge |

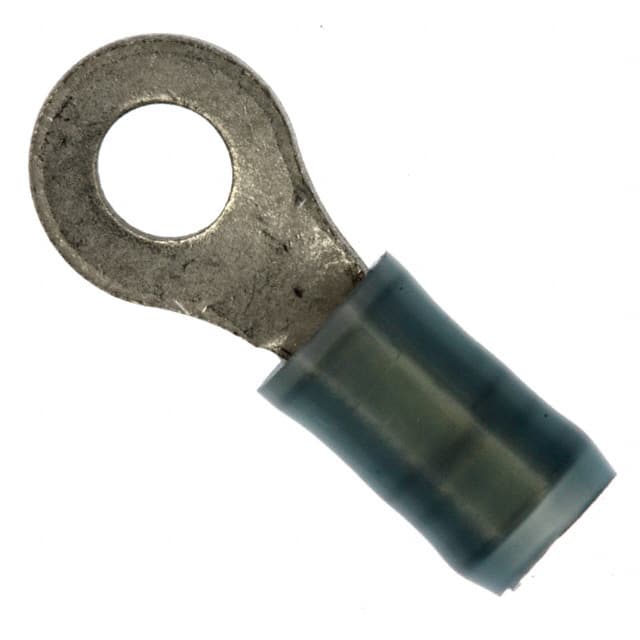

The TE Connectivity 320560 is a PIDG (Pre-Insulated Diamond Grip) ring terminal designed for reliable performance in high-vibration environments. Its blue nylon insulation is color-coded for 14-16 AWG wire, simplifying terminal identification and ensuring correct crimp tool selection.
Key specifications include a 14-16 AWG wire gauge, #8 stud size, and crimp termination. The terminal body is made of copper per ASTM B-152 with tin plating per ASTM B-545, providing excellent corrosion resistance. The copper sleeve crimps to the wire insulation for added vibration support, while inner serrations in the barrel maximize electrical contact and tensile strength. Operating temperature is rated up to 105°C with a maximum voltage of 300V.
Design features include a serrated termination for secure connections, UL 94V-2 rated nylon insulation, and compliance with SAE AS7928, Type II, Class 1. Typical applications include instruments, control panels, lighting, power supplies, transportation, and motor circuits. The terminal is free hanging (in-line) with dimensions of 21.82mm length, 8.71mm width, and 0.79mm thickness.
Compliance data shows RoHS3 status (unverified) and REACH unaffected (conflicting sources). Verify with manufacturer before use in regulated applications. Datasheet and packaging details are not fully available; standard package quantity is a placeholder and should be confirmed with distributor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.48 | $0.48 |
| 10+ | $0.41 | $0.41 |
| 25+ | $0.38 | $0.38 |
| 50+ | $0.37 | $0.37 |
| 100+ | $0.35 | $0.35 |
| 250+ | $0.33 | $0.33 |
| 500+ | $0.31 | $0.31 |
| 1,000+ | $0.30 | $0.30 |
| 3,000+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It supports 14-16 AWG wire.
It is designed for a #8 stud.
The maximum operating voltage is 300V.
The maximum operating temperature is 105°C.
The insulation is nylon, UL 94V-2 rated.
It is a free hanging (in-line) mount.
It is listed as RoHS3 compliant, but this is unverified and should be confirmed with the manufacturer.
