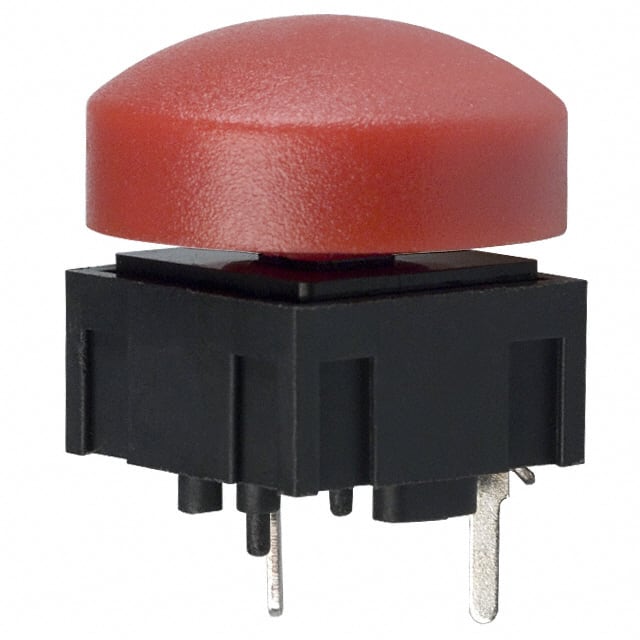

The E-Switch 320.02E11.09RED is a tactile switch designed for various applications. It features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration.
Key electrical specifications include a contact rating of 0.025A at 50VDC and it is non-illuminated. The switch has an operating force of 135gf and an actuator height of 15.30mm off the PCB. The actuator type is a round button with a top actuated orientation.
Mechanically, the switch has an outline of 12.40mm x 12.40mm and is designed for Through Hole mounting with a PC Pin termination style. The operating temperature range is from -20°C to 70°C. This model includes a red cap as a distinguishing feature.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The circuit type is SPST-NO.
The contact rating is 0.025A @ 50VDC.
It is mounted using the Through Hole method.
The operating temperature range is -20°C to 70°C.
The actuator height is 15.30mm.
The outline dimensions are 12.40mm x 12.40mm.
No, this switch is Non-Illuminated.
