| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
529 pcs
|
529 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Features | |
| Illumination | |
| Lead Spacing | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

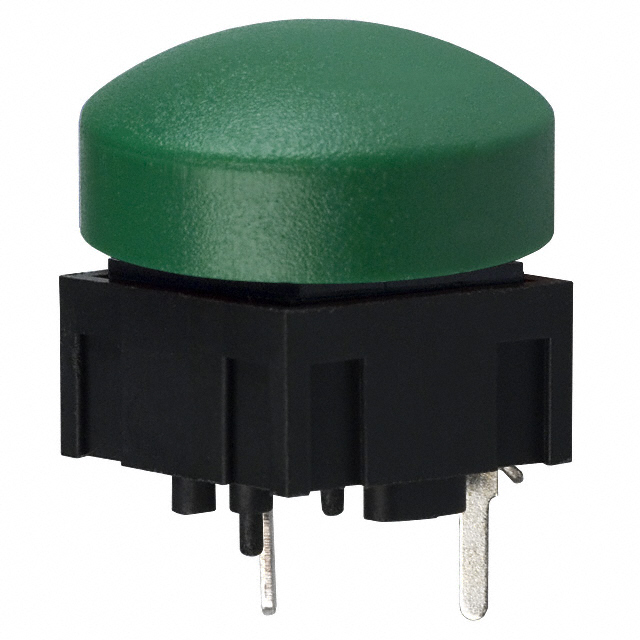

The E-Switch 320.02E11.09GRN is a tactile switch designed for various electronic applications. It features a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration with an Off-Mom function, meaning the circuit is open until the button is pressed.
This switch has a contact rating of 0.025A at 50VDC, making it suitable for low-power switching applications. The actuator type is a round button with a green cap, and it is oriented for top actuation. The mounting type is Through Hole, with an actuator height of 15.30mm off the PCB and a termination style of PC Pin.
The operating temperature range for this component is -20°C to 70°C. The outline dimensions are 12.40mm x 12.40mm, and it requires an operating force of 135gf. This model is non-illuminated.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The E-Switch 320.02E11.09GRN has a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration.
The contact rating for the 320.02E11.09GRN is 0.025A at 50VDC.
This tactile switch is designed for Through Hole mounting.
The operating temperature range for this switch is -20°C to 70°C.
The RoHS Status is listed as RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
