| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adapter Body Thickness | |
| Board Material | |
| Contact Finish | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Current Rating | |
| Dim A | |
| Dim B | |
| Dim C | |
| Dim D | |
| Dim W | |
| Dim X | |
| Dim Y | |
| Dim Z | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature | |
| Pad Size | |
| Pin Material | |
| Pin Plating | |
| Pitch | |
| Socket Contact Material | |
| Socket Housing Material | |
| Suggested PCB Hole Size | |
| Termination | |
| Termination Style |

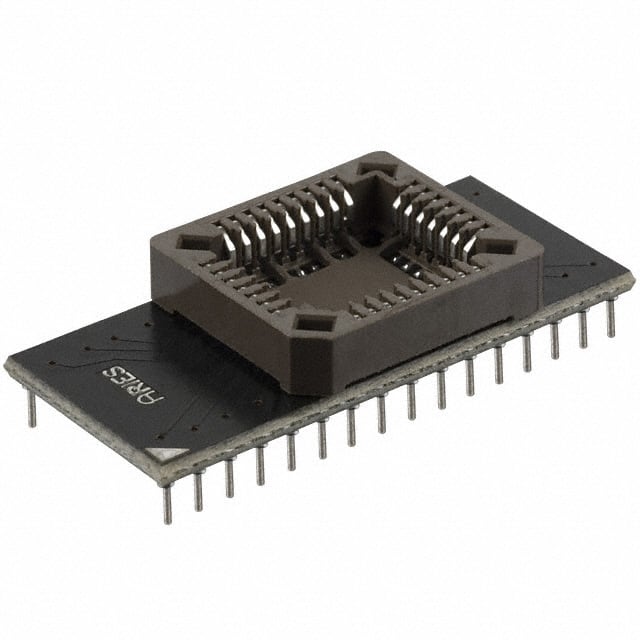

The Aries Electronics 32-653000-10 is a PLCC-to-DIP socket adapter designed to convert PLCC packaged ICs to DIP footprints for prototyping and testing. It features 32 pins with a 2.54mm pitch and 0.6" (15.24mm) row spacing on the DIP side. The adapter body is made of FR4 epoxy glass, 1.58mm thick, with 1-oz copper traces. Pins are brass 360 1/2-hard per UNS C36000 with tin-lead plating. The adapter is through hole mount with solder termination. It is rated for 1 amp current and operates up to 105°C. Suggested PCB hole size is 0.71 ±0.08 mm. The adapter accepts an optional PLCC surface mount socket with UL 94V-0 PPS housing and phosphor bronze, tin-plated contacts.
| Qty | Low | High |
|---|---|---|
| 1+ | $57.73 | $57.73 |
| 10+ | $49.07 | $49.07 |
| 25+ | $46.00 | $46.00 |
| 55+ | $43.51 | $43.51 |
| 110+ | $41.44 | $41.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
32 pins.
2.54mm (0.100").
1 A.
Through hole.
Up to 105°C.
FR4 epoxy glass.
0.71 ±0.08 mm diameter.
