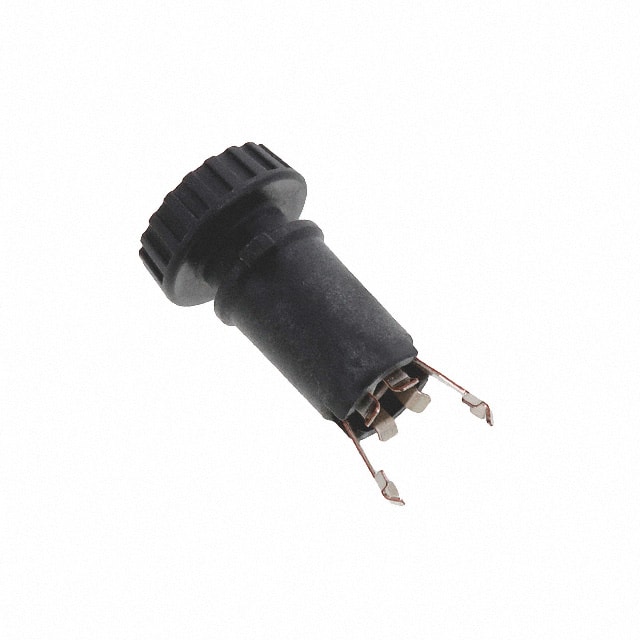

This Schurter Inc. FPG3 series fuseholder, part number 3101.8511, is designed for 5 x 20 mm fuse links. It provides a shock-safe category of PC2 and offers a degree of protection rated at IP40. The fuseholder features a snap-in mounting attachment for front-side installation into panels with a thickness ranging from 1.0 to 3.0 mm.
Electrical specifications include a rated voltage of 250 VAC (VDE) or 500 V (UL/CSA) and a rated current of 10 A (VDE) or 16 A (UL/CSA). It has a rated power acceptance of 2.5 W at 23°C. The terminals are suitable for solder or quick-connect (4.8 x 0.5 mm) connections. The socket is constructed from black thermoplastic with a UL 94V-0 rating, and the terminals are made of tin-plated copper alloy.
This fuseholder is suitable for appliances with protection class I according to IEC 61140. The admissible ambient temperature range is -40°C to 85°C, with a climatic category of 40/085/21 according to IEC 60068-1. Applications include household appliances and medical equipment.
Approvals include VDE (Certificate Number: 127216) and UL (File Number: E39328).
This fuseholder accepts 5 x 20 mm fuse links.
The rated voltage is 250 VAC for VDE and 500 V for UL/CSA.
The rated current is 10 A for VDE and 16 A for UL/CSA.
The admissible ambient temperature range is -40°C to 85°C.
The degree of protection is IP40.
It can accommodate panel thicknesses from 1.0 to 3.0 mm.
It has VDE (Certificate Number: 127216) and UL (File Number: E39328) approvals.
