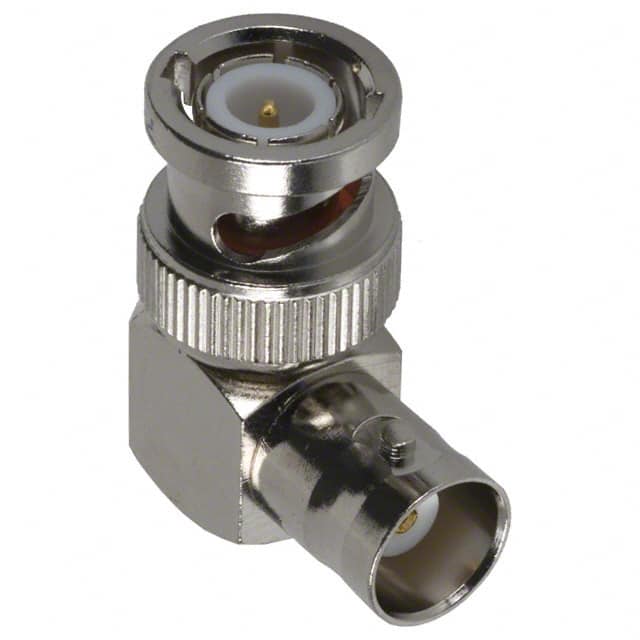

31-9 BNC plug to jack right angle adapter from Amphenol RF. 50 Ohm impedance, 4 GHz max frequency, free hanging in-line mount with bayonet lock.
Mfr Part #:

31-9

Available from 1 distributors
Mfr Name: Amphenol RF
Amphenol RF
BNC plug to jack right angle adapter from Amphenol RF. 50 Ohm impedance, 4 GHz max frequency, free hanging in-line mount with bayonet lock.
✓ Total Stock: 1 pcs

31-9 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

31-9 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adapter Series
Adapter Type
Center Contact Plating
Center Gender
Conversion Type
Convert From (Adapter End)
Convert To (Adapter End)
Fastening Type
Frequency
Impedance
Mounting Type
Style
View Similar Products (0)

31-9 Description

Short technical summary and product information.

The Amphenol RF 31-9 is a BNC series coaxial adapter converting a BNC plug (male pin) to a BNC jack (female socket). It features a right angle style for space-constrained applications and a free hanging in-line mounting type. The adapter uses bayonet lock fastening on both ends for secure connections.



Electrical specifications include a characteristic impedance of 50 Ohms and a maximum operating frequency of 4 GHz. Center contact plating is silver and gold. This adapter is designed for RF signal routing where a 90-degree change in direction is needed.



The adapter is RoHS3 compliant and has an MSL of 1 (unlimited). It is suitable for use in test equipment, telecommunications, and other RF systems requiring a reliable BNC interconnect.

31-9 Quick Information

Product Type: Coaxial Connector (RF) Adapter
Canonical Name: BNC Plug to Jack Right Angle Adapter 50 Ohm
Subcategory: BNC Adapter

31-9 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

31-9 Features

  • BNC plug to jack right angle adapter.
  • 50 Ohm characteristic impedance.
  • 4 GHz maximum operating frequency.
  • Free hanging in-line mounting style.
  • Bayonet lock fastening on both ends.

31-9 Applications

  • RF test equipment signal routing.
  • Telecommunications infrastructure connections.
  • Space-constrained RF system layouts.

31-9 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the impedance of the Amphenol RF 31-9 adapter?

50 Ohms.

What is the maximum frequency of the 31-9 adapter?

4 GHz.

What type of connector does the 31-9 convert?

It converts a BNC plug (male pin) to a BNC jack (female socket).

What is the mounting style of the 31-9?

Free hanging (in-line) right angle.

What fastening type does the 31-9 use?

Bayonet lock on both ends.
