| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Ingress Protection | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

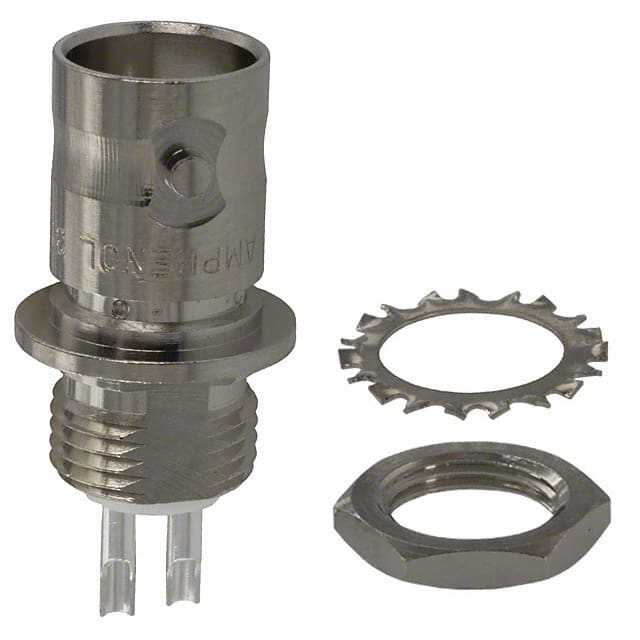

The Amphenol RF 31-2225 is a coaxial connector receptacle that supports both BNC and Twinaxial styles. It features a female socket and male pin contact arrangement with 50 Ohm characteristic impedance, suitable for RF applications up to 4 GHz.
The connector is designed for panel mounting with a bulkhead rear side nut mounting feature and uses bayonet lock fastening for secure mating. Contacts are terminated via solder cups, and the shield is soldered. Center contacts are made of beryllium copper and brass. The housing has a silver finish and is rated weatherproof for ingress protection. Extended insulation is included for additional electrical isolation.
| Qty | Low | High |
|---|---|---|
| 1+ | $32.37 | $32.37 |
| 10+ | $27.51 | $27.51 |
| 25+ | $25.79 | $25.79 |
| 50+ | $24.56 | $24.56 |
| 100+ | $23.39 | $23.39 |
| 250+ | $21.93 | $21.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm impedance, maximum frequency 4 GHz.
Panel mount with bulkhead rear side nut (bulkhead mounting feature).
Solder cup for contacts and solder for shield termination.
BNC and Twinaxial.
Yes, it has ingress protection rated as Weatherproof.
