| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | 0276 | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| SVHC Present | |
| Shield Termination |

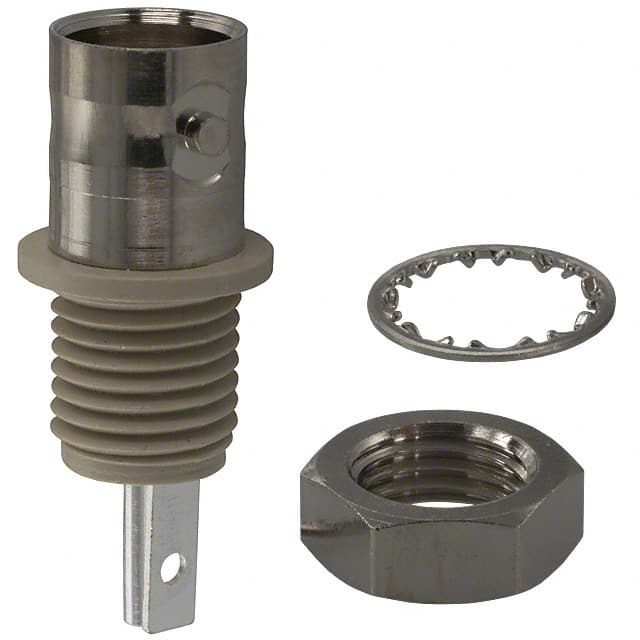

The Amphenol RF 31-10 is a BNC connector assembly designed for RF applications. It features a jack, female socket configuration with 50 Ohm impedance and a frequency rating of 4 GHz. The connector uses a bayonet lock fastening mechanism and panel mount with bulkhead rear side nut mounting method. Contact termination is solder cup and shield termination is solder. The center contact material is phosphor bronze. Housing color is silver and white. This connector is isolated.
It is RoHS3 compliant and REACH unaffected. Moisture sensitivity level is 1 (unlimited). The connector is intended for use in telecommunications, test equipment, and broadcast applications where reliable 50 Ohm connections are required.
Panel mount with bulkhead rear side nut.
50 Ohm.
4 GHz.
BNC.
Solder cup for contact, solder for shield.
Bayonet lock.
RoHS3 compliant per database record.
