| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | 1102 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Current Rating (Amps) | |
| Features | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

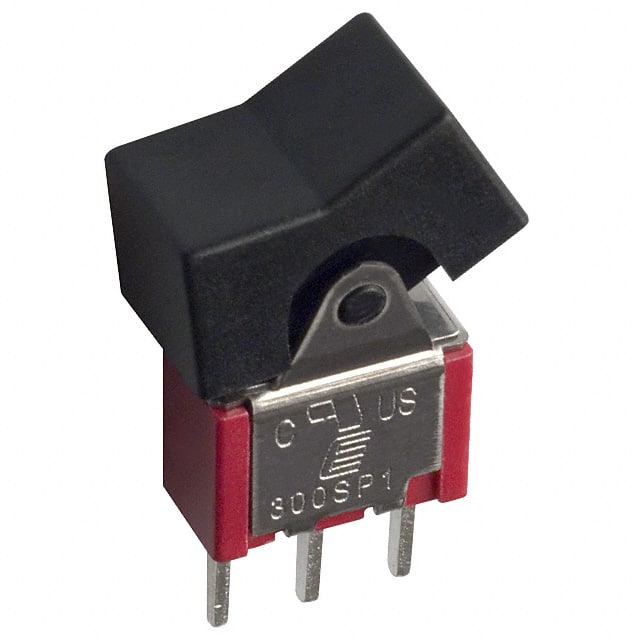

This E-Switch 300SP1J1BLKM2QE is a miniature rocker switch designed for various applications. It features a Single Pole Double Throw (SPDT) circuit configuration and is rated for 5 Amps at 120VAC or 28VDC, and 2 Amps at 250VAC.
The switch has a typical electric life of 50,000 make-and-break cycles at full load. It offers an insulation resistance of 1,000 Mega-ohm minimum and a dielectric strength of 1,000 V RMS at sea level. The operating temperature range is from -30°C to 85°C.
Designed with through-hole mounting and PC pin termination style, this black colored rocker switch also includes epoxy-sealed terminals for added durability. The actuator is concave with no marking.
This component is compliant with RoHS3 standards and has an MSL rating of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switch has an SPDT (Single Pole Double Throw) circuit configuration.
The switch function is On-On.
The current rating at 120VAC is 5A.
The voltage rating is 28VDC.
-30°C to 85°C.
The electrical life is at least 50,000 cycles.
Yes, the switch is RoHS3 compliant.
