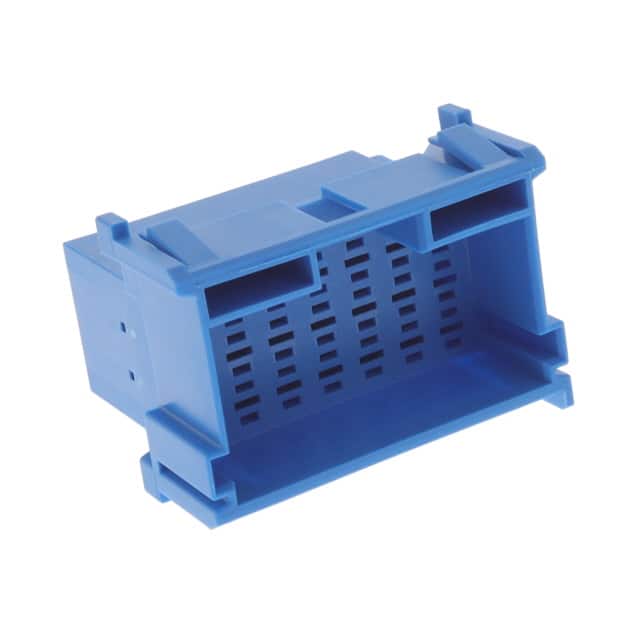

3-967630-1 Rectangular connector housing for 21 male pin contacts with 5.00mm pitch. Panel mount with snap-in, crimp termination, blue color.
Mfr Part #:

3-967630-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Rectangular connector housing for 21 male pin contacts with 5.00mm pitch. Panel mount with snap-in, crimp termination, blue color.
✓ Total Stock: 5,432 pcs
$ Price Range: $1.38 - $2.44

3-967630-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
5,432 pcs
On Request
5432 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3-967630-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Termination
Contact Type
Housing Material
Lead Spacing
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Row Spacing
Termination Style
View Similar Products (0)

3-967630-1 Description

Short technical summary and product information.

This is a rectangular connector housing from TE Connectivity, part number 3-967630-1. It is a receptacle housing designed for 21 male pin contacts arranged in 3 rows with a 5.00mm pitch and 5.50mm row spacing.



The housing is panel mounted with snap-in feature and uses crimp termination. It is made of PA66-GF13 / PA6-GF15 material (dual material per PCN-23-174035) and includes a secondary locking device for contact retention. Operating temperature range is -40°C to 120°C.



The blue color housing is suitable for various applications requiring reliable interconnections. It is compatible with TE's tab housing system (2.8mm). Note: Compliance data (RoHS, REACH, MSL) is unverified.

3-967630-1 Quick Information

Product Type: Rectangular Connector Housing
Canonical Name: Rectangular Connector Housing, Receptacle, 21 Positions, 5.00mm Pitch, Panel Mount, Crimp
Subcategory: Rectangular Connector Housing

3-967630-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3-967630-1 Estimated Pricing

Qty Low High
1+ $2.44 $2.44
10+ $2.07 $2.07
25+ $1.94 $1.94
50+ $1.85 $1.85
100+ $1.76 $1.76
250+ $1.65 $1.65
600+ $1.55 $1.55
1,200+ $1.48 $1.48
3,000+ $1.38 $1.38

Estimated market price range - modelled values for guidance only, not live distributor offers.

3-967630-1 Features

  • 21-position receptacle housing with 3 rows.
  • 5.00mm pitch and 5.50mm row spacing.
  • Panel mount with snap-in feature.
  • Crimp termination for secure wire connections.
  • Operating temperature range -40°C to 120°C.

3-967630-1 Applications

  • Used in automotive and industrial wiring harnesses.
  • Ideal for power and signal distribution systems.
  • Suitable for panel-mounting in control cabinets.
  • Compatible with TE tab connectors for modular systems.

3-967630-1 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 3-967630-1 have?

21 positions.

What is the pitch of the connector?

5.00mm.

What mounting type is used?

Panel Mount, Snap-In.

How many rows of contacts?

3 rows.

What is the operating temperature range?

-40°C to 120°C.

What is the contact termination style?

Crimp.

What is the housing material?

PA66-GF13 / PA6-GF15 (dual material).
