| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

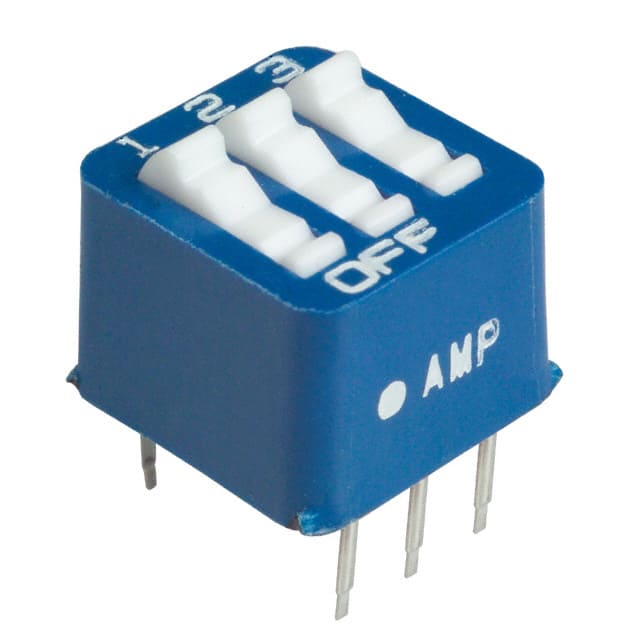

The TE Connectivity 3-5435640-0 is a SPST Rocker DIP Switch designed for through-hole mounting. It offers 3 positions and is rated for 60mA at 5VDC.
Key electrical specifications include a copper alloy contact material with gold finish. The switch has a pitch of 2.54mm (0.100"). The actuator is a raised rocker type.
This component operates within a temperature range of -55°C to 105°C. It is not washable and has a height above board of 8.64mm (0.340").
The series is identified as 7100. The RoHS status is listed as RoHS3 Compliant, Moisture Sensitivity Level (MSL) as 1 Unlimited, and REACH Status as REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 5VDC.
The current rating is 60mA.
The switch has 3 positions.
It uses a raised rocker actuator.
The mounting type is Through Hole.
The operating temperature range is -55°C to 105°C.
