| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Material | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Glow Wire | |
| Glow-Wire Compliant | |
| Housing Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Insulator Range |

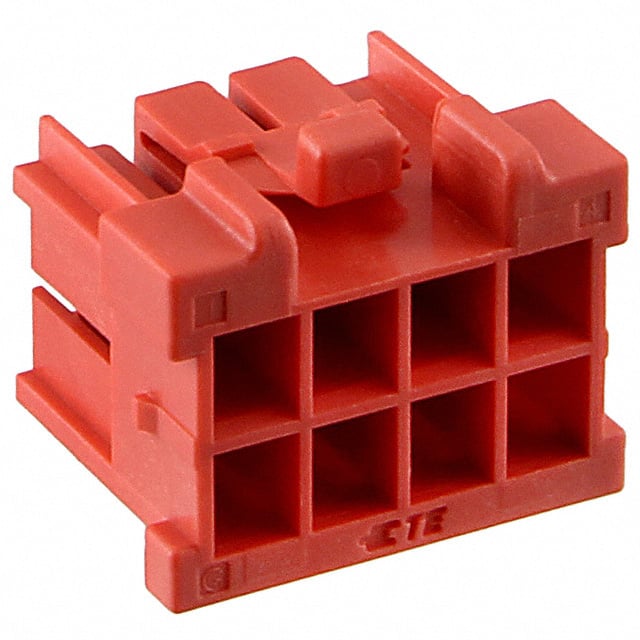

The TE Connectivity 3-1971905-4 is a rectangular connector housing from the Grace Inertia Connector 3.3 series. It is a plug housing with 8 positions arranged in 2 rows at a 3.30mm pitch and 5.20mm row spacing. The housing is made of UL94-V0 rated red nylon and features a latch lock fastening type for secure mating.
This housing accepts female socket contacts with crimp termination, suitable for wire gauges #20 to #24 AWG and wire insulation diameters of 1.5 to 2.5mm. It is rated for 250V AC/DC and 4A maximum current, with an operating temperature range of -30°C to 105°C. The contacts are tin-plated copper alloy.
The Grace Inertia Connector series employs an inertia locking mechanism that simultaneously completes the circuit and locks the connector, providing reliable mating and preventing mismatching. This connector is designed for free hanging (in-line) mounting and is suitable for use in home appliances and other large electrical products.
| Qty | Low | High |
|---|---|---|
| 21,600+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.30mm.
It has 8 positions arranged in 2 rows.
The maximum current rating is 4A.
The voltage rating is 250V AC/DC.
It is designed for free hanging (in-line) mounting.
It accepts wire gauges #20 to #24 AWG.
Yes, it is glow wire compliant per IEC 60335-1.
