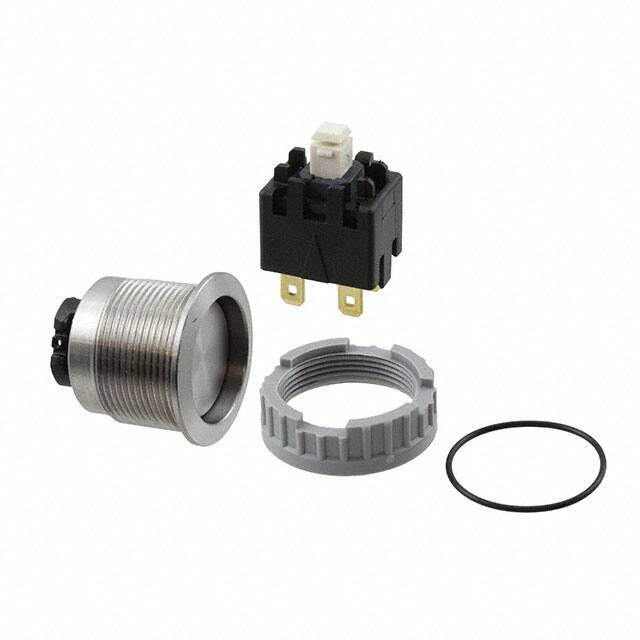

3-101-012 The Schurter Inc. 3-101-012 is an anti-vandal pushbutton switch with a DPST circuit, rated for 16A at 250V. It offers panel mount installation and IP64 ingress protection.
Mfr Part #:

3-101-012

Available from 1 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
The Schurter Inc. 3-101-012 is an anti-vandal pushbutton switch with a DPST circuit, rated for 16A at 250V. It offers panel mount installation and IP64 ingress protection.
✓ Total Stock: 3 pcs
$ Price Range: $0.75

3-101-012 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3-101-012 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Actuator Marking
Actuator Material
Actuator Type
Automotive Grade
Circuit
Color
Current Rating (Amps)
Housing Material
Industrial Grade
Ingress Protection
Lead Style
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Tape & Reel
Termination Style
Type
Voltage Rating
View Similar Products (0)

3-101-012 Description

Short technical summary and product information.

The Schurter Inc. 3-101-012 is an anti-vandal pushbutton switch designed for robust applications. It features a Double Pole Single Throw (DPST) circuit and is rated for a switching voltage of 250 VAC and a switching current of 16A (AC/DC).



This switch is designed for panel mounting with a front-side installation and requires a circular panel cutout of 22.10mm diameter. The termination style is Quick Connect, measuring 0.187" (4.7mm). It offers a silver actuator and a round button design.



Environmental and mechanical characteristics include an ingress protection rating of IP64, making it dust-tight and water-resistant. The operating temperature range is from -20°C to 85°C. The housing is constructed from stainless steel, and the actuator is available in stainless steel or ceramic.



Compliance information indicates RoHS3 compliance and REACH unaffected status. The switch has a lifetime expectancy of 1.5 million actuations and a shock protection rating of IK07.

3-101-012 Quick Information

Product Type: Pushbutton Switch
Series: MSM LA
Canonical Name: Schurter Inc. 3-101-012 Anti-Vandal Pushbutton Switch, DPST, 16A, 250VAC
Subcategory: Pushbutton Switch

3-101-012 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3-101-012 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

3-101-012 Features

  • DPST circuit for reliable switching.
  • High current rating of 16A.
  • 250V voltage rating.
  • IP64 dust and water resistance.
  • Durable stainless steel construction.

3-101-012 Applications

  • Ideal for industrial control panels.
  • Suitable for harsh environmental conditions.
  • Used in access control systems.
  • Applicable in machinery interfaces.

3-101-012 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the switching voltage and current rating for the Schurter Inc. 3-101-012?

The Schurter Inc. 3-101-012 switch has a switching voltage of 250 VAC and a switching current rating of 16A (AC/DC).

What is the operating temperature range for this pushbutton switch?

The operating temperature range for the Schurter Inc. 3-101-012 is -20°C to 85°C.

What is the RoHS status of the Schurter Inc. 3-101-012?

The Schurter Inc. 3-101-012 is RoHS3 Compliant.

What is the ingress protection rating of the 3-101-012 switch?

The Schurter Inc. 3-101-012 switch has an ingress protection rating of IP64.

What type of actuator does the 3-101-012 switch feature?

The Schurter Inc. 3-101-012 switch features a round, button actuator made of stainless steel or ceramic.
