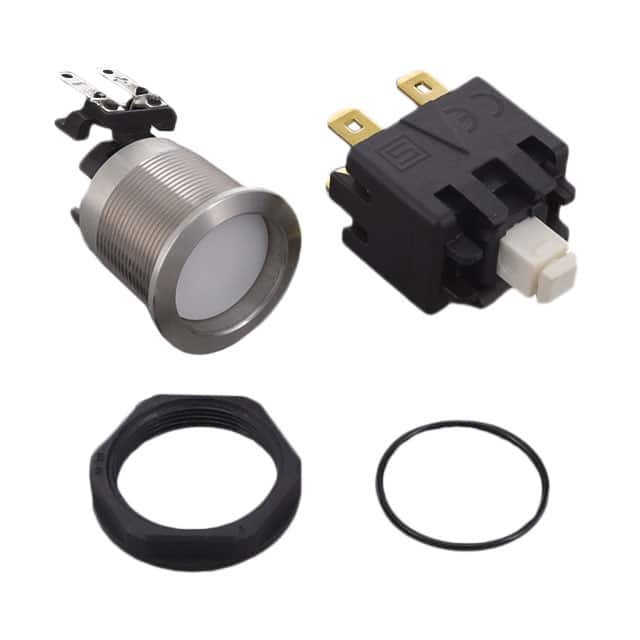

3-101-011 The Schurter Inc. 3-101-011 is a DPST anti-vandal illuminated pushbutton switch. It offers a 16A switching current at 250V and IP64 ingress protection.
Mfr Part #:

3-101-011

Available from 1 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
The Schurter Inc. 3-101-011 is a DPST anti-vandal illuminated pushbutton switch. It offers a 16A switching current at 250V and IP64 ingress protection.
✓ Total Stock: 4 pcs
$ Price Range: $0.75

3-101-011 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3-101-011 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Circuit
Color
Current Rating (Amps)
Illumination Type, Color
Illumination Voltage (Nominal)
Ingress Protection
Lead Spacing
Lead Style
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Termination Style
Type
Voltage Rating
View Similar Products (0)

3-101-011 Description

Short technical summary and product information.

The Schurter Inc. 3-101-011 is a robust DPST anti-vandal illuminated pushbutton switch designed for demanding applications. It features a high switching current rating of 16A at 250V and a durable construction suitable for panel mounting.



This switch provides IP64 ingress protection, making it resistant to dust and water splashes. The illuminated design with a white LED and clear diffuser enhances visibility and user feedback. It operates within a temperature range of -20°C to 85°C and utilizes quick connect termination for easy installation.



Key specifications include a 10N actuating force, 5.2mm actuating travel, and a lifetime of 1.5 million actuations. The panel cutout diameter is 19.10mm, and it is designed for front panel mounting. The illumination voltage is nominally 24 VDC.

3-101-011 Quick Information

Product Type: Pushbutton Switch
Canonical Name: Schurter Inc. 3-101-011 DPST Anti-Vandal Illuminated Pushbutton Switch
Subcategory: Anti-Vandal Switch

3-101-011 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3-101-011 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

3-101-011 Features

  • DPST anti-vandal illuminated pushbutton switch.
  • 16A switching current at 250V.
  • IP64 ingress protection against dust and water.
  • Panel mount with 19.10mm cutout.
  • White LED illumination with 24 VDC supply.

3-101-011 Applications

  • Suitable for industrial control panels.
  • Ideal for access control systems.
  • Used in harsh environmental conditions.
  • Provides clear visual status indication.

3-101-011 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the switching voltage and current rating?

The switching voltage is 250 VAC and the current rating is 16A (AC/DC).

What is the operating temperature range?

The operating temperature range is -20°C to 85°C.

What type of mounting and termination does this switch use?

It uses panel mount, front mounting and quick connect termination style.

What is the ingress protection rating?

The ingress protection rating is IP64.

What is the illumination voltage and color?

The illumination voltage is 24 VDC and the color is white.

What is the panel cutout dimension?

The panel cutout dimension is circular with a 19.10mm diameter.
