| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
452,000 pcs
|
452000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| SVHC Present |

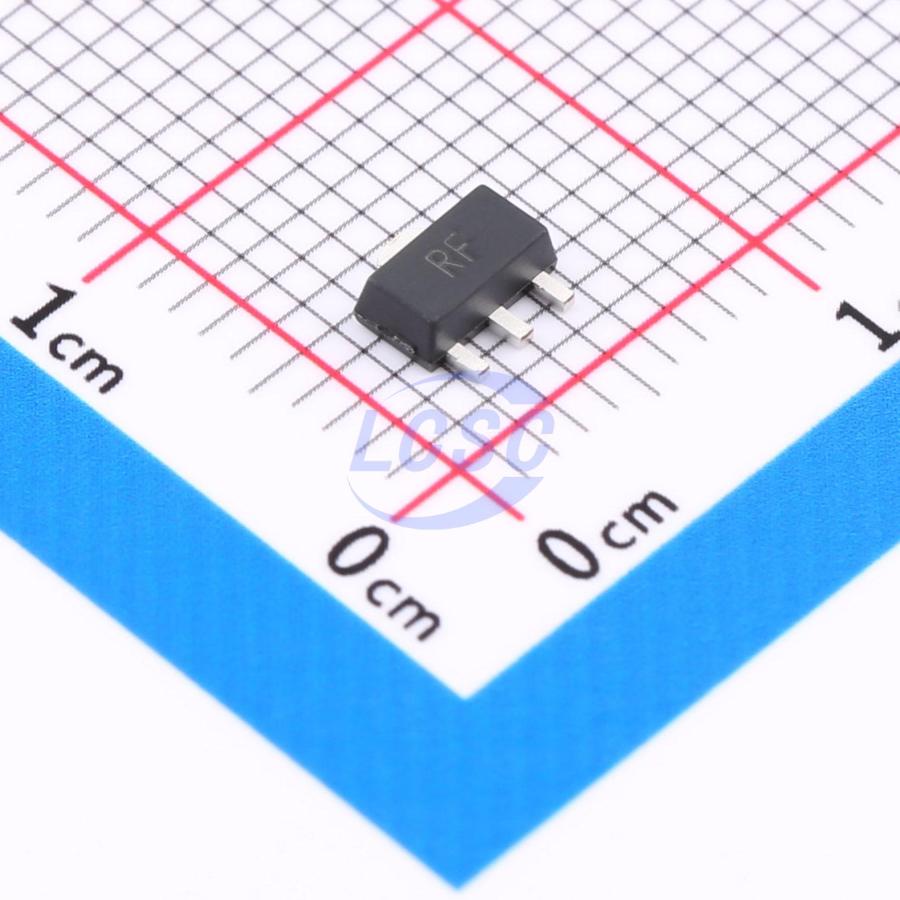

The Renesas 2SC3357-RF is a bipolar junction transistor (BJT) specifically designed for radio frequency (RF) applications. It is housed in a SOT-89 surface-mount package.
This RF transistor offers notable performance characteristics, including low noise figure (NF) and high gain (Ga). Specifically, it exhibits an NF of 1.1 dB TYP. and a Ga of 7.5 dB TYP. at VCE = 10 V, IC = 7 mA, and f = 1.0 GHz. At higher currents, it provides an NF of 1.8 dB TYP. and a Ga of 9.0 dB TYP. under VCE = 10 V, IC = 40 mA, f = 1.0 GHz conditions. The maximum available gain (MAG) is typically 10 dB at IC = 40 mA and f = 1 GHz.
Its features make it suitable for various RF circuits requiring amplification with minimal noise. The SOT-89 package is commonly used for surface-mount designs where space is a consideration.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The noise figure is 1.1 dB typical at VCE = 10 V, IC = 7 mA, and f = 1.0 GHz, and 1.8 dB typical at VCE = 10 V, IC = 40 mA, f = 1.0 GHz.
The gain is 7.5 dB typical at VCE = 10 V, IC = 7 mA, and f = 1.0 GHz, and 9.0 dB typical at VCE = 10 V, IC = 40 mA, f = 1.0 GHz.
The maximum available gain is typically 10 dB at IC = 40 mA and f = 1 GHz.
The 2SC3357-RF is available in a SOT-89 package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
