| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,900 pcs
|
12900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,006 pcs
|
2006 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Storage Temperature |

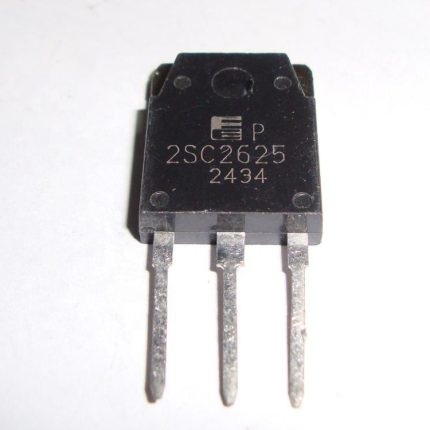

The FUJT 2SC2625 is a high-performance power transistor featuring a triple diffused planar construction. It is engineered for high voltage and high speed switching applications, offering high reliability. Key applications include switching regulators, ultrasonic generators, high frequency inverters, and general purpose power amplifiers.
With a maximum collector-emitter voltage of 400V and a continuous collector current of 7A, the 2SC2625 is well-suited for demanding power applications. Its TO-3P package facilitates efficient heat dissipation, with a junction-to-case thermal resistance of 1.55°C/W. The transistor exhibits fast switching times, with turn-on, storage, and fall times all rated at a maximum of 1µs or 2µs under specific test conditions.
Electrical characteristics include a minimum DC current gain (hFE) of 10 at 4A and 5V. The collector-emitter saturation voltage (VCE(sat)) is a maximum of 1.2V at 4A and 0.8A base current, and the base-emitter saturation voltage (VBE(sat)) is a maximum of 1.5V under the same conditions. The operating junction temperature range is -55°C to +150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (VCEO) for the 2SC2625 transistor is 400V.
The maximum continuous collector current (IC) for the 2SC2625 transistor is 7A.
The 2SC2625 transistor comes in a TO-3P package.
The junction-to-case thermal resistance (Rth(j-c)) of the 2SC2625 transistor is 1.55°C/W.
The 2SC2625 transistor is used in switching regulators, ultrasonic generators, high frequency inverters, and general purpose power amplifiers.
