| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,239 pcs
|
1239 pcs | On Request | 1 | On Request | On Request | 99 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package |
The 2N5061 from Powerex Inc. is a sensitive gate Silicon Controlled Rectifier (SCR) designed for various electronic applications. It features a maximum off-state voltage of 60V and a maximum on-state current of 800mA (RMS).
Key electrical characteristics include a maximum on-state voltage of 1.7V and a holding current of 5mA. The gate trigger current is rated at a maximum of 200µA, with a gate trigger voltage of 800mV. The device also has a low off-state current of 10µA.

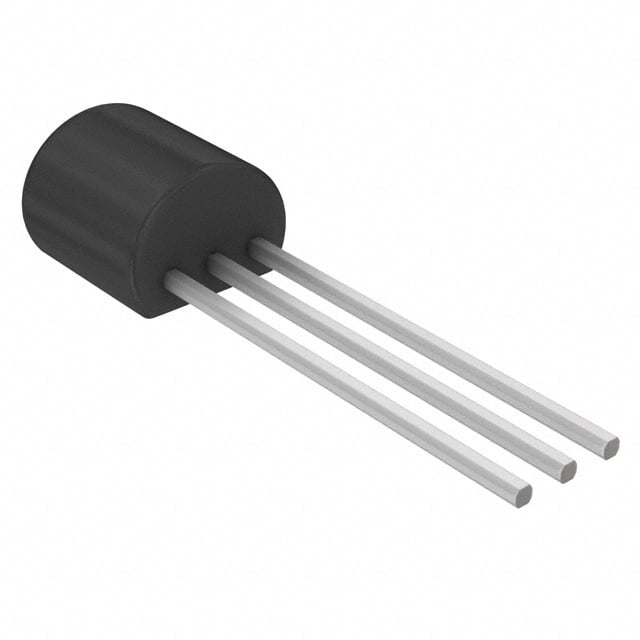

This SCR is packaged in a TO-92 (TO-226) long body configuration, suitable for through-hole mounting. Its operating temperature range is from -40°C to 110°C, making it adaptable to various environmental conditions. The 2N5061 is part of the discrete semiconductor product family, specifically within thyristors and SCRs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.40 | $2.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum off-state voltage for the 2N5061 SCR is 60V.
The 2N5061 has a maximum continuous on-state current of 800mA (RMS).
The 2N5061 operates between -40°C and 110°C.
The 2N5061 SCR is supplied in a TO-92 (TO-226) long body package.
The 2N5061 is designed for through-hole mounting.
