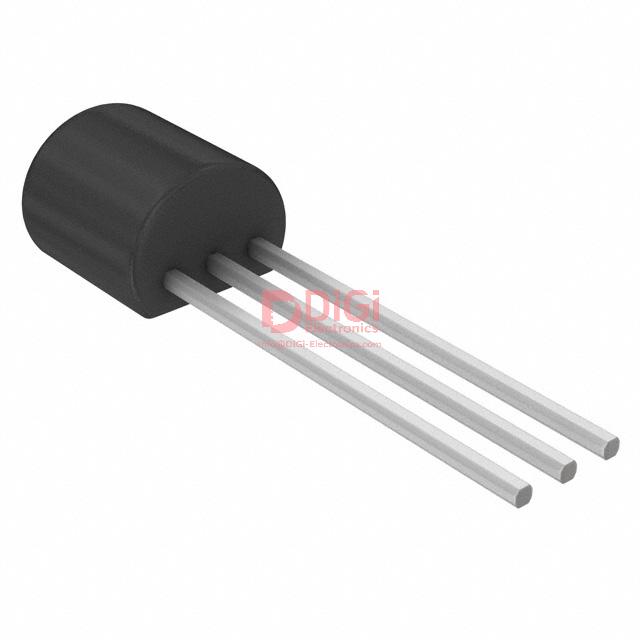

MAC97A8 The NXP Semiconductors MAC97A8 is a 4-quadrant triac designed for direct interfacing with microcontrollers and low-power gate trigger circuits. It features a sensitive gate and high blocking voltage capability.
Mfr Part #:

MAC97A8

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MAC97A8 is a 4-quadrant triac designed for direct interfacing with microcontrollers and low-power gate trigger circuits. It features a sensitive gate and high blocking voltage capability.
✓ Total Stock: 12,000 pcs
$ Price Range: $0.30

MAC97A8 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
12,000 pcs
On Request
12000 pcs On Request 2000 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MAC97A8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Storage Temperature
Supplier Device Package
Tape & Reel
View Similar Products (0)

MAC97A8 Description

Short technical summary and product information.

The MAC97A8 from NXP Semiconductors is a planar passivated, very sensitive gate, four-quadrant triac. It is housed in a SOT54 (TO-92) plastic package, making it suitable for direct interfacing with microcontrollers, logic integrated circuits, and other low-power gate trigger circuits.



Key electrical specifications include a repetitive peak off-state voltage (VDRM) of 600V, an RMS on-state current (IT(RMS)) of 0.6A, and a non-repetitive peak on-state current (ITSM) of 8A. The gate trigger current (IGT) is as low as 5mA, indicating its sensitive gate characteristic. The triac operates within a temperature range of -40°C to 110°C.



This triac is designed for general-purpose low-power phase control and switching applications, including solid-state relays. Its planar passivated construction ensures voltage ruggedness and reliability. The TO-92 package is a common through-hole component suitable for various PCB mounting applications.

MAC97A8 Quick Information

Product Type: Triac
Canonical Name: MAC97A8 4Q Triac
Subcategory: Logic - Sensitive Gate

MAC97A8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MAC97A8 Estimated Pricing

Qty Low High
1+ $0.30 $0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

MAC97A8 Features

  • 600V repetitive peak off-state voltage.
  • 0.6A RMS on-state current.
  • Very sensitive gate trigger current.
  • Suitable for logic level interfacing.
  • TO-92 package for through-hole mounting.

MAC97A8 Applications

  • General purpose low power phase control.
  • General purpose low power switching.
  • Solid-state relay applications.
  • Direct interfacing to microcontrollers.

MAC97A8 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum repetitive peak off-state voltage for the MAC97A8?

The maximum repetitive peak off-state voltage (VDRM) for the MAC97A8 is 600V.

What is the RMS on-state current of the MAC97A8?

The RMS on-state current (IT(RMS)) for the MAC97A8 is 0.6A under full sine wave conditions with a lead temperature of 50°C.

What is the gate trigger current (IGT) for the MAC97A8?

The gate trigger current (IGT) for the MAC97A8 is a maximum of 5mA for T2+ G+ and T2+ G- conditions, and 7mA for T2- G+.

What is the operating temperature range for the MAC97A8?

The MAC97A8 operates within a temperature range of -40°C to 110°C.

What package type is the MAC97A8 supplied in?

The MAC97A8 is supplied in a TO-92 (TO-226) package.
