Mfr Part #:

2EDL23N06PJ

Mfr Name: Infineon

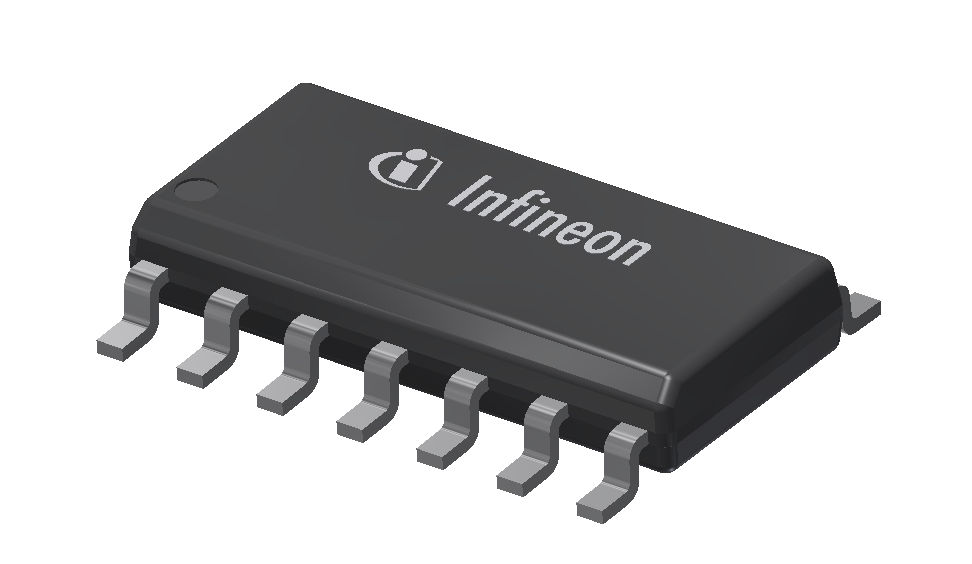

The Infineon 2EDL23N06PJ is a 600V half-bridge gate driver IC. It offers an output current of +1.8A source and -2.5A sink, with a propagation delay matching of 60ns max.

✓ Total Stock: 1,515 pcs

$ Price Range: $2.01

2EDL23N06PJ Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	1,515 pcs On Request	1515 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

2EDL23N06PJ Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Halogen Free	Yes
Mounting Type	Surface Mount
Output Voltage	10 V - 17.5 V
SVHC Present	Not Present

View Similar Products (0)

2EDL23N06PJ Description

Short technical summary and product information.

The Infineon 2EDL23N06PJ is a 600V half-bridge gate driver IC designed for controlling power devices like MOSFETs and IGBTs. It features Infineon's thin-film-SOI-technology for excellent ruggedness against transient voltages and an integrated ultra-fast bootstrap diode.

Key electrical specifications include an output source/sink current capability of +1.8 A/-2.5 A and a maximum blocking voltage of 600 V. The device offers tight propagation delay matching of 60 ns maximum and is tolerant to negative transient voltages up to -100 V. It supports 3.3 V, 5 V, and 15 V input logic levels.

This gate driver is housed in a DSO-14 package and is suitable for surface mount applications. Its design makes it ideal for motor drives, general-purpose inverters, refrigeration compressors, and half-bridge and full-bridge converters in offline AC-DC power supplies for telecom and lighting applications.

2EDL23N06PJ Quick Information

Product Type: Gate Driver

Series: 2EDL23x06PJ

Canonical Name: Infineon 2EDL23N06PJ 600 V Half Bridge Gate Driver

Subcategory: Gate Drivers

2EDL23N06PJ Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 3

REACH Status: REACH Unaffected

Lead Free: Yes

2EDL23N06PJ Estimated Pricing

Qty	Low	High
1+	$2.01	$2.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

2EDL23N06PJ Features

600 V half-bridge gate driver IC.
1.8 A source / 2.5 A sink current.
Tolerant to -100 V negative transients.
60 ns max. propagation delay matching.
DSO-14 package for surface mounting.

2EDL23N06PJ Applications

Used in motor drive applications.
Suitable for general purpose inverters.
Applied in refrigeration compressors.
Found in offline AC-DC power supplies.

2EDL23N06PJ FAQs

8 frequently asked questions generated from this part’s specifications.

What is the maximum blocking voltage for the 2EDL23N06PJ?

The maximum blocking voltage is 600 V.

What are the output source and sink current capabilities?

The output source current is typically 1.8 A, and the sink current is typically -2.5 A.

What is the propagation delay matching for this gate driver?

The propagation delay matching is a maximum of 60 ns.

What is the dV/dt immunity of the 2EDL23N06PJ?

The dV/dt immunity is ±50 V.

What is the tolerance for negative transient voltage?

It is tolerant to negative transient voltage up to -100 V for pulse widths up to 300 ns.

What input logic voltage levels are compatible?

It is compatible with 3.3 V, 5 V, and 15 V input logic levels.

What is the output voltage range?

The output voltage ranges from 10 V to 17.5 V.

What package type is the 2EDL23N06PJ in?

The part is supplied in a DSO-14 package.
