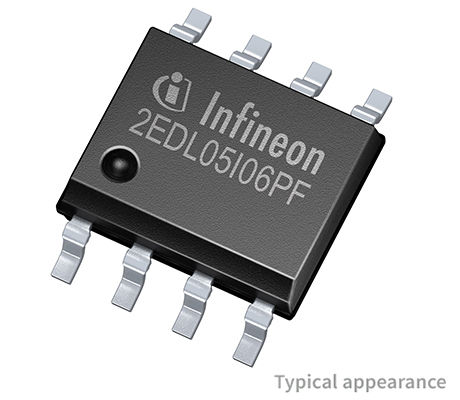

The Infineon 2EDL05I06PF is a 600V half-bridge gate driver IC designed for applications requiring robust performance and high noise immunity, leveraging Infineon's thin-film-SOI technology.
This gate driver features a floating channel capable of operating up to 600V, making it suitable for driving N-channel power MOSFETs or IGBTs in high-side configurations. It provides an output source current of 0.36A and a sink current of 0.7A. Key electrical characteristics include a propagation delay matching of 60ns maximum and dV/dt immunity of ±50 V/ns. The gate drive supply range is from 10V to 20V, with undervoltage lockout for both channels.
Input logic is compatible with 3.3V, 5V, and 15V levels. The device is housed in a DSO-8 surface-mount package. Potential applications include motor drives, general-purpose inverters, and half-bridge or full-bridge converters in offline AC-DC power supplies for telecom and lighting.
Product validation is qualified for industrial applications according to JEDEC standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 2EDL05I06PF is fully operational to 600 V.
The output source current is typically 0.36 A, and the sink current is typically -0.7 A.
The propagation delay matching is a maximum of 60 ns.
The gate drive supply range is from 10 V to 20 V.
It is compatible with 3.3 V, 5 V, and 15 V input logic.
The 2EDL05I06PF is supplied in a DSO-8 package.
Yes, the RoHS status is RoHS3 Compliant.
