Mfr Part #:

2EDL05N06PF

Mfr Name: Infineon

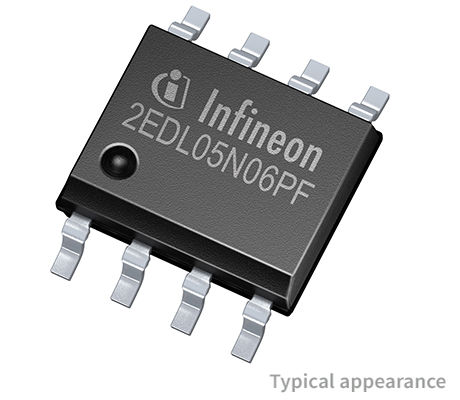

The Infineon 2EDL05N06PF is a 600V half-bridge gate driver IC. It offers integrated bootstrap diode functionality and robust performance for power applications.

✓ Total Stock: 3,407 pcs

$ Price Range: $2.01

2EDL05N06PF Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,000 pcs On Request	2000 pcs	On Request	1	On Request	On Request	18+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,407 pcs On Request	1407 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

2EDL05N06PF Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Halogen Free	Yes
Mounting Type	Surface Mount
Output Voltage	10 V - 17.5 V
Voltage	600 V

View Similar Products (0)

2EDL05N06PF Description

Short technical summary and product information.

The Infineon 2EDL05N06PF is a 600V half-bridge gate driver IC designed for robust performance in demanding power applications. Utilizing Infineon's thin-film-SOI technology, it provides excellent ruggedness and noise immunity.

Key electrical specifications include a gate drive supply range from 10V to 20V, output source current capability of 0.36A, and sink current capability of -0.7A. It features a propagation delay matching of up to 60ns and is tolerant to negative transient voltages up to -100V. The device supports input logic compatibility down to 3.3V and includes undervoltage lockout for both channels.

This gate driver is suitable for applications such as motor drives, general-purpose inverters, and half-bridge or full-bridge converters in offline AC-DC power supplies for telecom and lighting. The integrated bootstrap diode simplifies the design for high-side N-channel power MOSFET or IGBT driving.

The 2EDL05N06PF is available in a DSO-8 package and is qualified for industrial applications according to JEDEC standards.

2EDL05N06PF Quick Information

Product Type: Gate Driver IC

Canonical Name: Infineon 2EDL05N06PF 600 V Half Bridge Gate Driver

Subcategory: Half Bridge Gate Driver

2EDL05N06PF Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 3

REACH Status: REACH Unaffected

Lead Free: Yes

2EDL05N06PF Estimated Pricing

Qty	Low	High
1+	$2.01	$2.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

2EDL05N06PF Features

Operates up to 600 V.
0.36 A source and -0.7 A sink current.
60 ns max propagation delay matching.
Integrated bootstrap diode.
Tolerant to -100 V negative transients.

2EDL05N06PF Applications

High-voltage power MOSFET and IGBT gate driving.
DC-DC converters and power inverters.
Motor control and industrial drives.
Switch-mode power supplies (SMPS).
Automotive and industrial power systems.

2EDL05N06PF FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum operating voltage of the 2EDL05N06PF?

The 2EDL05N06PF is fully operational up to +600 V.

What package does the 2EDL05N06PF come in?

The 2EDL05N06PF is available in a DSO-8 surface-mount package.

What is the output current capability of the 2EDL05N06PF?

The driver provides 0.36 A typical source current and 0.7 A typical sink current.

What is the propagation delay matching of the 2EDL05N06PF?

The maximum propagation delay matching is 60 ns.

What is the dV/dt immunity of the 2EDL05N06PF?

The dV/dt immunity is ±50 V/ns.

What logic levels are compatible with the 2EDL05N06PF?

The input is compatible with 3.3 V, 5 V, and 15 V logic levels.

What is the gate drive supply voltage range for the 2EDL05N06PF?

The gate drive supply voltage range is 10 V to 20 V.
