4230-T130-K0DE-3A
ETA
The E-T-A 4230-T130-K0DE-3A is a 3-pole thermal-magnetic miniature circuit breaker rated for 3A and up to 480VAC or 125VDC. It is designed for DIN rail mounting.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

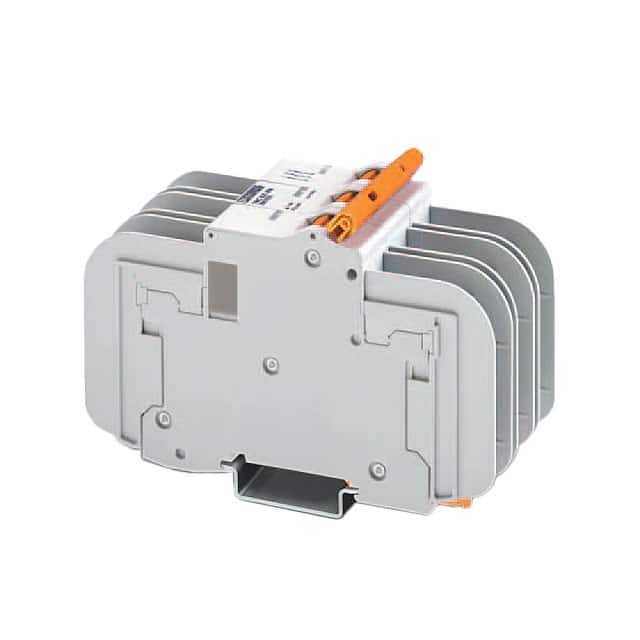

The Phoenix Contact TMC 8... series miniature circuit breakers (MCBs), including the 2907676 model, are designed for branch overload and short-circuit protection. These UL 489 listed devices provide an interrupt capacity of 10 kAIC at up to 277/480 V AC and 125 V DC, making them suitable for a variety of applications.
The 2907676 features a 3-pole configuration with a 3A current rating and a 480V AC voltage rating. It utilizes a thermal magnetic trip mechanism and has a lever actuator. The breaker is designed for mounting on a 35 mm NS35 rail, with each pole measuring 17.6 mm wide.
Typical applications for the TMC 8... series include the protection of cables, motors, generators, transformers, thyristors, silicon rectifiers, computers, peripheral equipment, industrial process control systems, telecommunications equipment, and power supplies. The series is UL listed for the U.S. and Canada, TÃœV listed, and carries the CE mark.
The current rating is 3A.
It has 3 poles.
The AC voltage rating is 480V.
The DC voltage rating is 125V.
It is a thermal magnetic circuit breaker.
The interrupt capacity is 10 kAIC.
It is mounted on a DIN rail.
