| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Exit Angle | |
| Centerline (Pitch) | |
| China RoHS | |
| Circuit Application | |
| Color | |
| Connector & Housing Type | |
| Connector Mounting Type | |
| Connector Position Assurance Capable | |
| Connector System | |
| Connector Type | |
| Contact Current Rating (Max) | |
| Contact Size | |
| Contact Type | |
| ELV | |
| Housing Material | |
| Mating Alignment | |
| Mating Alignment Type | |
| Mixed & Hybrid Connector | |
| Mounting Type | |
| Nominal Voltage Architecture | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage | |
| Packaging Method | |
| Packaging Quantity | |
| Pitch | |
| Product Length | |
| Product Width | |
| Row Spacing | |
| Row-to-Row Spacing | |
| Sealable | |
| Serviceable | |
| Strain Relief | |
| Tape & Reel | |
| Terminal Position Assurance | |
| connector_height |

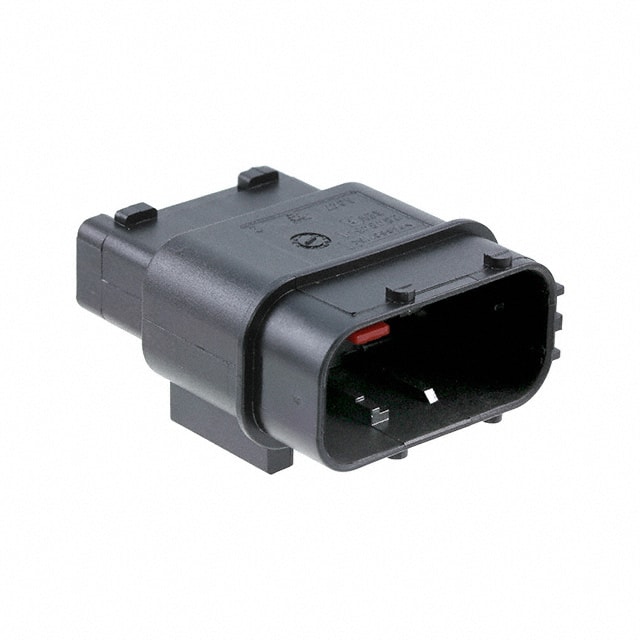

The TE Connectivity 284844-1 is a sealed rectangular connector housing designed for wire-to-wire applications. It is part of the AMP MCP connector system and accommodates male terminals with contact sizes of 1.5mm and 2.8mm. This hybrid housing supports both power and signal circuits, with a maximum current rating of 11A for 1.5mm contacts and 20A for 2.8mm contacts, at an operating voltage of 24 VDC.
The housing features 12 positions arranged in 2 rows with a 5mm centerline pitch. It is made of PA GF material and is black in color. The connector is cable mount (free-hanging) with a 180° cable exit angle. It includes terminal position assurance (TPA) and a polarizing rib for mating alignment. The operating temperature range is -25°C to 125°C.
Dimensions: connector height 49.4mm, width 21.5mm, length 41.4mm, with row-to-row spacing of 5mm. The housing is sealable and non-serviceable. It is packaged in boxes of 500 units.
The 284844-1 is compliant with EU RoHS, REACH, ELV, and China RoHS regulations. It is suitable for use in automotive and industrial environments requiring sealed connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.21 | $2.21 |
| 10+ | $2.03 | $2.03 |
| 25+ | $1.81 | $1.81 |
| 100+ | $1.73 | $1.73 |
| 250+ | $1.60 | $1.60 |
| 500+ | $1.46 | $1.46 |
| 1,000+ | $1.37 | $1.37 |
| 2,500+ | $1.32 | $1.32 |
| 5,000+ | $1.30 | $1.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
5.20mm (0.205 inches).
11A for 1.5mm contacts and 20A for 2.8mm contacts.
24 VDC.
Free hanging (in-line) cable mount.
Yes.
-25°C to 125°C.
