| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit Application | |
| Color | |
| Connector Length | |
| Connector System | |
| Connector Type | |
| Contact Current Rating (Max) | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Glow Wire Rating | |
| Halogen Free | |
| Housing Entry Configuration | |
| Housing Material | |
| Mating Retention | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| PCB Mount Retention | |
| Packaging Method | |
| Packaging Quantity | |
| Panel Mount Feature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Sealable | |
| Strain Relief | |
| Tape & Reel | |
| Termination Method to Wire & Cable | |
| UL Flammability Rating | |
| Wire size | |
| connector_height |

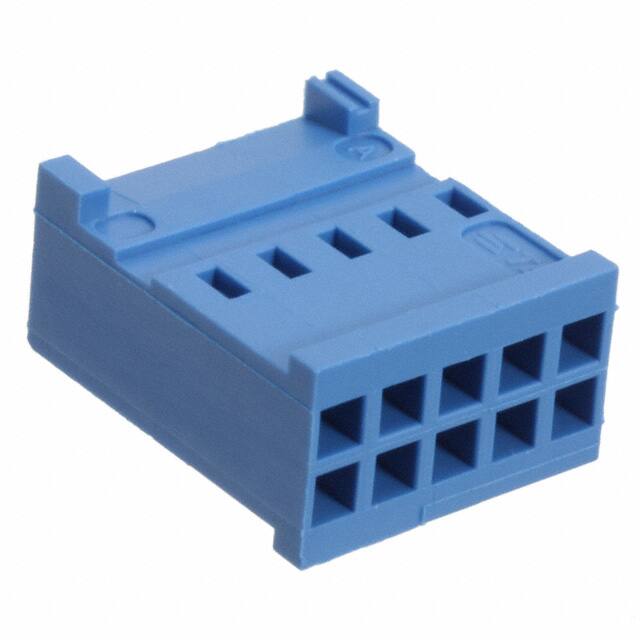

The TE Connectivity 281839-5 is a rectangular receptacle housing from the AMPMODU HE 13/HE 14 series. It features 10 positions arranged in 2 rows with a 2.54mm pitch and row spacing, making it suitable for wire-to-board signal connections. The housing is designed for free hanging (in-line) mounting and uses a detent lock fastening system for secure mating.
This housing accepts female socket contacts terminated via crimp or insulation displacement (IDC) methods. It is rated for a maximum contact current of 3A and operates over a temperature range of -55°C to 125°C. The housing is made of PBT GF material with a UL 94V-0 flammability rating, and it is colored blue. The connector length is 12.7mm and height is 15mm, supporting wire sizes from 0.08 to 0.22 mm².
The product is sealed in bags of 500 pieces. It complies with RoHS and REACH directives and is halogen-free. The housing does not include strain relief, panel mount, or PCB mount retention features, but it does include mating retention. It is intended for signal circuit applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
| 10+ | $0.84 | $0.84 |
| 25+ | $0.75 | $0.75 |
| 100+ | $0.72 | $0.72 |
| 250+ | $0.67 | $0.67 |
| 500+ | $0.63 | $0.63 |
| 1,000+ | $0.59 | $0.59 |
| 2,500+ | $0.55 | $0.55 |
| 5,000+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 10 positions arranged in 2 rows.
The pitch is 2.54mm (0.100 inches).
The maximum contact current rating is 3A.
It is designed for free hanging (in-line) mounting.
The operating temperature range is -55°C to 125°C.
The housing supports crimp and insulation displacement (IDC) termination.
The housing is made of PBT GF material with a UL 94V-0 flammability rating.
