| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23,345 pcs
|
23345 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
806 pcs
|
806 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
806 pcs
|
806 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish Thickness | |
| Contact Finish Thickness - Mating | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Length - Post | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Header Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Pitch - Mating | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

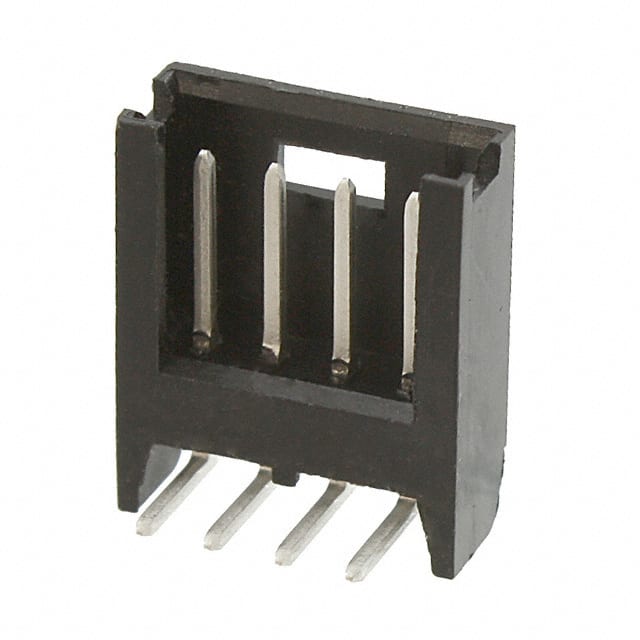

The TE Connectivity AMPMODU Mod II 280378-1 is a 4-position, single-row, shrouded header designed for board-to-board or cable applications. It features a 2.54mm (0.100") mating pitch and a through hole right angle mounting style, making it suitable for compact PCB layouts where space is constrained.
This connector uses male square pins made of brass with a tin mating finish (3.00µm thickness) and a tin post finish. The insulation is black thermoplastic rated UL94 V-0, with a 5.00mm insulation height. The shrouded 3-wall design with detent lock provides secure mating and polarization.
Electrical ratings include 3A current capacity and 40V voltage rating. The operating temperature range is -40°C to 80°C. The contact length is 6.60mm mating and 3.50mm post. All 4 positions are loaded.
The part is part of the AMPMODU Mod II series and is RoHS3 compliant with MSL 1 (unlimited) moisture sensitivity. It is suitable for general-purpose interconnection in industrial, consumer, and commercial electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.89 | $0.89 |
| 10+ | $0.77 | $0.77 |
| 25+ | $0.71 | $0.71 |
| 100+ | $0.64 | $0.64 |
| 250+ | $0.58 | $0.58 |
| 1,000+ | $0.48 | $0.48 |
| 3,000+ | $0.47 | $0.47 |
| 5,000+ | $0.43 | $0.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 280378-1 has 4 positions, all loaded.
The mating pitch is 2.54mm (0.100").
The current rating is 3A.
The voltage rating is 40V.
Through hole, right angle mounting.
-40°C to 80°C.
RoHS3 compliant per manufacturer data.
