| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
254 pcs
|
254 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Color | |
| Compatible Insulation Diameter Range | |
| Connector Type | |
| Contact Base Material | |
| Contact Current Rating (Max) | |
| Contact Mating Area Plating Material | |
| Contact Termination | |
| Contact Type | |
| ELV | |
| Fastening Type | |
| Halogen Free | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Method | |
| Packaging Quantity | |
| Pitch | |
| Row Spacing | |
| Tape & Reel | |
| Wire Contact Termination Area Plating Material | |
| Wire size |

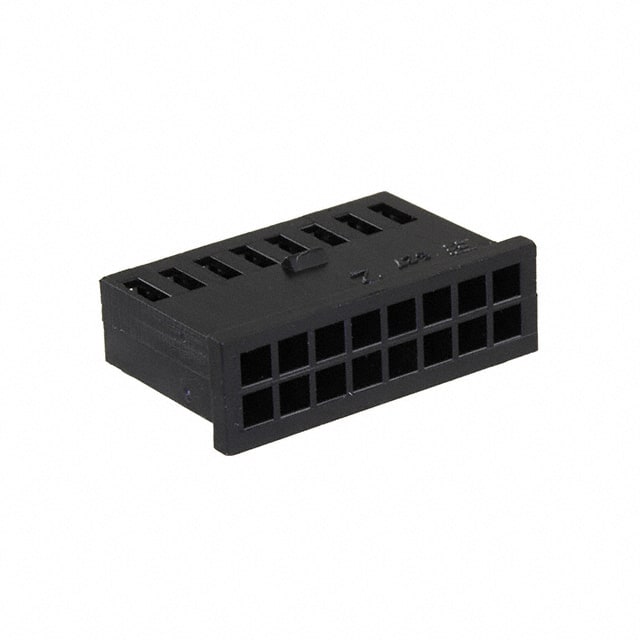

The TE Connectivity 280366 is a rectangular connector housing designed for use with AMPMODU IV/V crimp socket contacts. It features 16 positions arranged in 2 rows with a 2.54mm pitch and row spacing. The housing is free hanging (in-line) with a locking ramp fastening mechanism for secure mating. It is constructed with a black housing material (material not specified) and is rated for operating temperatures from -40°C to 80°C. The housing is suitable for signal circuit applications and accepts wire sizes 26-22 AWG with compatible insulation diameters of 0.89-1.55mm. The contacts are sold separately (e.g., TE 182206-2). The housing is packaged in loose piece quantities of 2000. It is compliant with RoHS, REACH, ELV, China RoHS, and is halogen-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.98 | $0.98 |
| 10+ | $0.83 | $0.83 |
| 25+ | $0.74 | $0.74 |
| 100+ | $0.71 | $0.71 |
| 250+ | $0.68 | $0.68 |
| 500+ | $0.64 | $0.64 |
| 1,000+ | $0.61 | $0.61 |
| 2,000+ | $0.52 | $0.52 |
| 5,000+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions arranged in 2 rows.
2.54mm (0.100").
Free hanging (in-line).
-40°C to 80°C.
26-22 AWG with insulation diameter 0.89-1.55mm.
Crimp socket contacts, such as TE 182206-2.
Yes, it is EU RoHS Directive 2011/65/EU Compliant.
