| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,924 pcs
|
1924 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
784 pcs
|
784 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Flammability Rating | |
| Housing Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination Style |

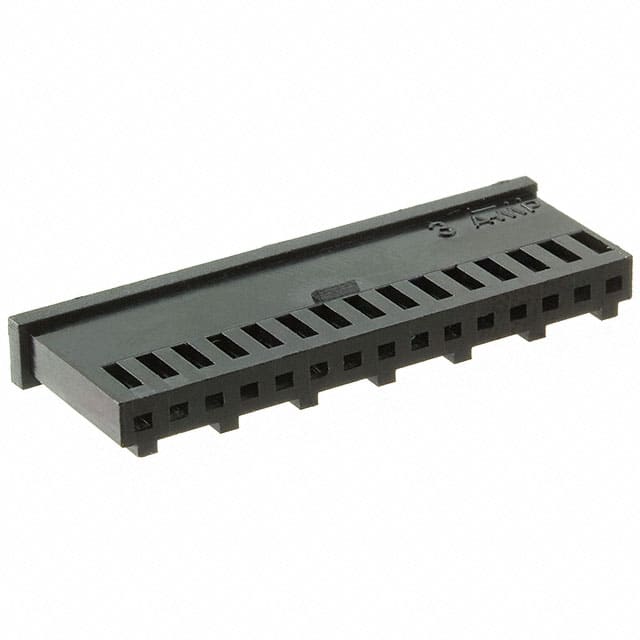

The TE Connectivity 280363 is a receptacle housing from the AMPMODU II series, designed for use with crimp snap-in contacts. It features 15 positions arranged in a single row with a 2.54mm (0.100") pitch, making it suitable for wire-to-wire or wire-to-board connections in a variety of electronic systems.
The housing is made from LCP (Liquid Crystal Polymer) with a UL94V-0 flammability rating, ensuring reliable performance in demanding environments. It uses a locking ramp fastening type for secure mating and is black in color. The free hanging (in-line) mounting style allows for flexible cable assembly without the need for additional hardware.
This housing is part of the AMPMODU II family, a widely used interconnect system known for its reliability and ease of assembly. It accepts female socket contacts that are terminated via crimping, providing a robust and repeatable connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.96 | $1.96 |
| 10+ | $1.71 | $1.71 |
| 25+ | $1.62 | $1.62 |
| 100+ | $1.54 | $1.54 |
| 250+ | $1.39 | $1.39 |
| 500+ | $1.28 | $1.28 |
| 1,000+ | $1.11 | $1.11 |
| 2,000+ | $0.99 | $0.99 |
| 5,000+ | $0.97 | $0.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 280363 has 15 positions in a single row.
The pitch is 2.54mm (0.100").
It uses free hanging (in-line) mounting.
The housing is made of LCP (Liquid Crystal Polymer) with a UL94V-0 flammability rating.
It supports crimp termination for female socket contacts.
