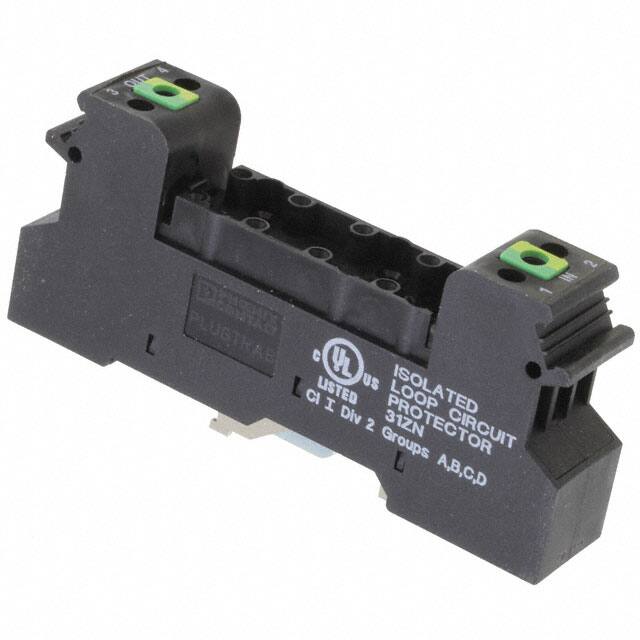

The Phoenix Contact 2783095 is a base element designed for use with protective plugs UFBK and UFBK-M. It features inductive decoupling and a universal foot for mounting on NS 32 or NS 35/7.5 DIN rails. The housing width is 17.5 mm.
This component has a nominal current rating of 2 A and operates within an ambient temperature range of -40 °C to 80 °C. It has an inflammability class of V2 according to UL 94 and a degree of protection of IP20. The conductor cross-section capabilities range from 0.2 mm² to 2.5 mm² for stranded wire and 0.2 mm² to 4 mm² for solid wire. AWG compatibility is from 24 to 12.
This product is listed as discontinued. It is WEEE/RoHS-compliant since February 14, 2006. The GTIN is 4017918069810. It is sold in packs of 10 pieces.
-40°C to 80°C.
2 A.
Stranded 0.2-2.5 mm², solid 0.2-4 mm², AWG 24-12.
UL 94 V2.
IP20.
17.5 mm.
Yes, WEEE-compliant since 02/14/2006.
