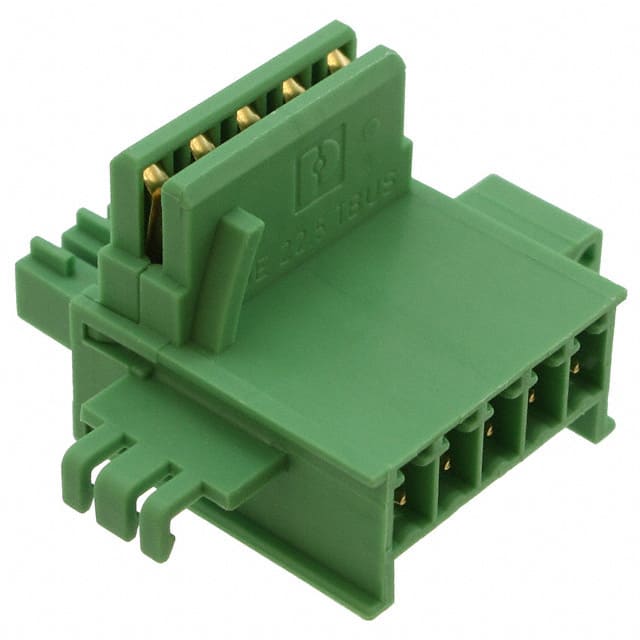

The Phoenix Contact 2707437 is a DIN rail bus connector from the ME 22,5 TBUS 1,5/ 5-ST-3,81 G series. This plug component is designed for reliable connections within electronic housings.
Key technical specifications include 5 positions and a pitch of 3.81 mm. It has a nominal voltage rating of 150 V and a nominal current rating of 8 A. The connector is constructed with gold-plated contacts for enhanced conductivity and durability. It meets the UL 94 V0 flammability rating, indicating a high level of safety.
This DIN rail connector has a green color and a height of 20 mm. It is manufactured in Germany and complies with CUL standards. The product is also recognized by EAC, UL, and cULus.
Environmental compliance includes China RoHS with an unlimited environmentally friendly use period (EFUP-e) and no hazardous substances above threshold values. The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The pitch of the Phoenix Contact 2707437 DIN rail connector is 3.81 mm.
The Phoenix Contact 2707437 has 5 positions.
The nominal current rating for the Phoenix Contact 2707437 is 8 A.
The nominal voltage for the Phoenix Contact 2707437 is 150 V.
The flammability rating of the Phoenix Contact 2707437 according to UL 94 is V0.
The Moisture Sensitivity Level (MSL) for this part is 1 Unlimited.
