| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Color | |
| Height | |
| Number of Positions | |
| Pitch | |
| Width |

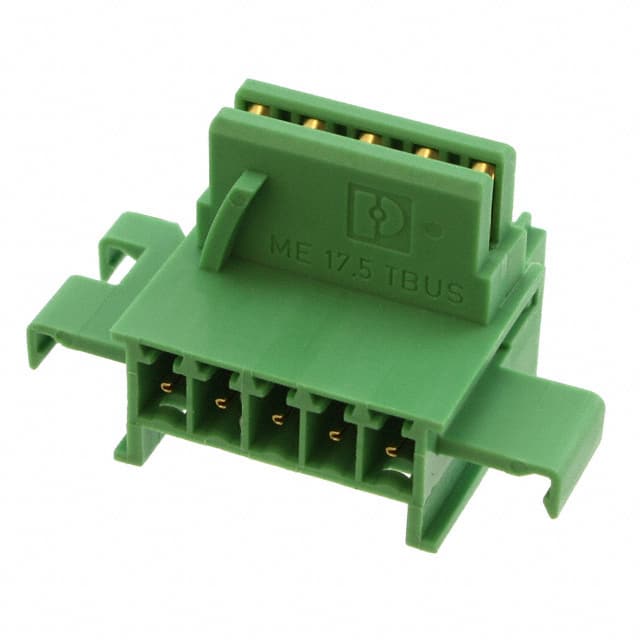

The Phoenix Contact 2709561 is a DIN rail connector, part of the ME 17,5 TBUS 1,5/ 5-ST-3,81 GN series. This connector is designed for DIN rail mounting and is universal for TBUS housings. It features gold-plated contacts and a 5-position configuration.
Key electrical specifications include a nominal voltage rating of 150 V and a nominal current rating of 8 A. The connector has a pitch of 3.81 mm. Mechanically, it measures 20 mm in height and 3.50 mm in width. The material has a flammability rating of UL 94 V0.
This component is particularly useful for bridging the supply voltage when using a MINI POWER system power supply unit. It is manufactured in Germany and comes in green.
Environmental compliance includes China RoHS with an environmentally friendly use period of unlimited (EFUP-e). The product is also RoHS3 compliant, has an MSL of 1 Unlimited, and is REACH Unaffected.
The Phoenix Contact 2709561 has 5 positions.
The pitch of the 2709561 DIN rail connector is 3.81 mm.
The nominal voltage rating for the 2709561 is 150 V.
The nominal current rating of the Phoenix Contact 2709561 is 8 A.
The flammability rating according to UL 94 is V0.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
