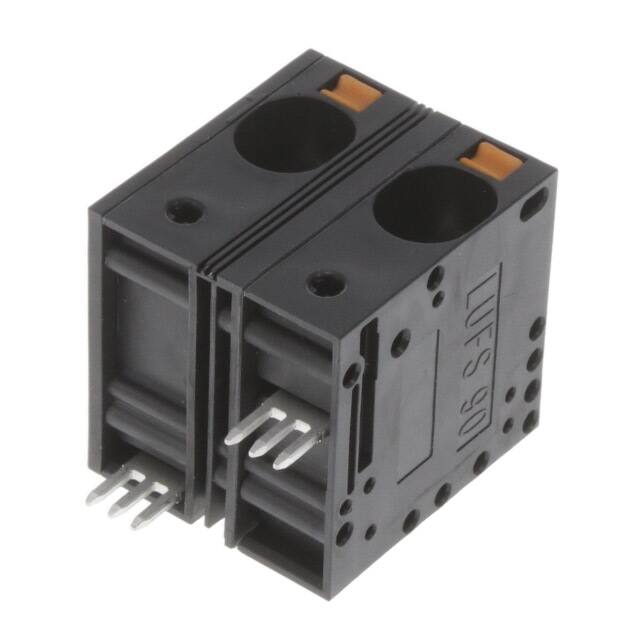

The Weidmüller LUFS 15.00/02/90V 5.0SN BK BX (order number 2499440000) is a 2 pole printed circuit board terminal from the OMNIMATE Power series. It features a 15.00 mm pitch and a 90° conductor outlet direction for horizontal wire entry relative to the PCB. The terminal uses a PUSH IN wire connection method without actuator, accepting solid, stranded, and flexible wires from 0.5 to 16 mm² (18 to 4 AWG).
Electrical ratings are 76 A / 1000 V per IEC and 53 A / 600 V per UL. The insulating material is Wemid (PA) with a flammability rating of UL 94 V-0 and a comparative tracking index (CTI) of ≥ 600. The contact material is E-Cu (electrolytic copper). Solder pins are octagonal, 1.2 mm diameter, with a 5 mm solder pin length and 1.7 mm solder eyelet hole diameter.
Mechanical dimensions: width 26.8 mm, height 35 mm, depth 28.55 mm, net weight 23.48 g. The terminal is touch-safe to IP20 when plugged and IP10 when unplugged. Operating temperature range is -40 to 120 °C, storage temperature -25 to 55 °C. The product is supplied in a box of 40 pieces.
The current rating is 76 A per IEC and 53 A per UL.
The voltage rating is 1000 V per IEC and 600 V per UL.
The pitch is 15.00 mm.
It has 2 poles.
It accepts 0.5 to 16 mm² (18 to 4 AWG) solid, stranded, and flexible wire.
The operating temperature range is -40 to 120 °C.
The flammability rating is UL 94 V-0.
