| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31 pcs
|
31 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Wire Gauge | |
| Wire Termination |

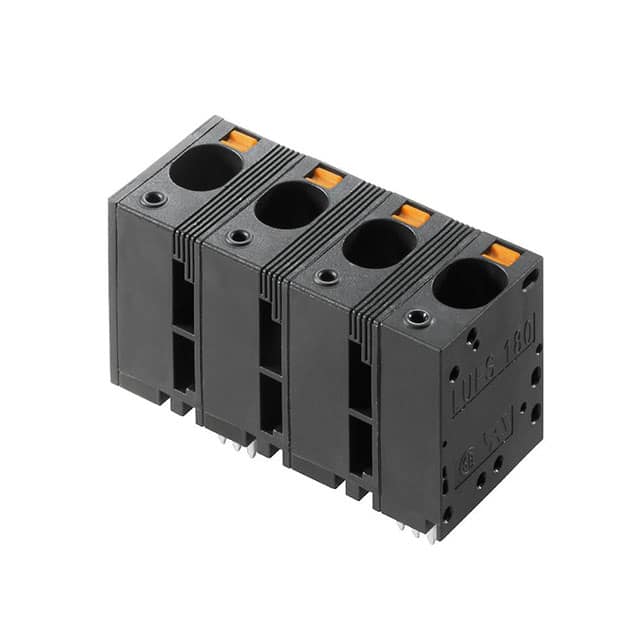

The Weidmüller LUFS 15.00/04/180V 5.0SN BK BX (order number 2492230000) is a 4-pole printed circuit board terminal block from the OMNIMATE Power series. It features a 15.00 mm pitch and a 180° conductor outlet direction, making it suitable for high-power PCB connections.
Electrical ratings are 1000 V / 76 A per IEC and 600 V / 57 A per UL. The terminal accepts wire sizes from 0.5 to 16 mm² (AWG 18-4) and uses a PUSH IN spring connection without an actuator for fast tool-less wiring. The clamping range supports solid and stranded conductors with an 18 mm stripping length.
The housing is made of Wemid (PA) insulating material with a V-0 flammability rating, and the contact material is E-Cu. Operating temperature range is -40 °C to 120 °C. The component is packaged in a box of 25 pieces.
The pitch is 15.00 mm.
The current rating is 76 A per IEC and 57 A per UL.
The voltage rating is 1000 V per IEC and 600 V per UL.
It uses through-hole (THT) mounting.
It accepts wire sizes from 0.5 to 16 mm² (AWG 18 to AWG 4).
The operating temperature range is -40 °C to 120 °C.
The housing material has a UL 94 V-0 flammability rating.
