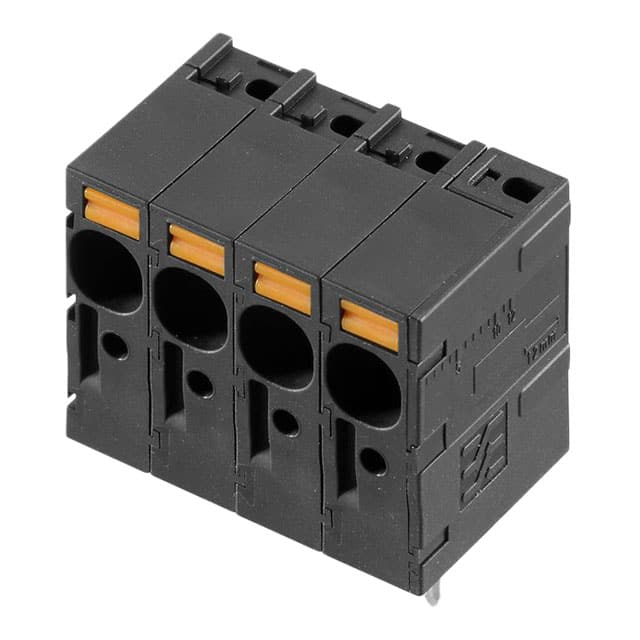

The Weidmüller 2473020000 (LLFS 7.50/04/90V 5.0SN BK BX) is a 4 pole printed circuit board terminal from the OMNIMATE Power series LL. It features a 7.50 mm pitch, PUSH IN wire connection method without actuator, and a 90° conductor outlet direction for space-saving PCB layouts. The terminal accepts solid or stranded wires from 0.25 mm² to 6 mm² (AWG 24 to AWG 8) and requires a 12 mm stripping length.
Electrical ratings are IEC 1000 V / 41 A and UL 600 V / 37 A, suitable for high power applications. The insulating material is Wemid (PA) with a V-0 flammability rating. Contacts are made of E-Cu with a tinned surface. The operating temperature range is -40°C to 120°C.
This through-hole solder terminal has a 5 mm solder pin length, 1.5 mm solder pin diameter, and a 2 mm solder eyelet hole diameter. Dimensions are 31 mm wide, 30.56 mm high, and 20.05 mm deep with a net weight of 16.55 g. Supplied in a box of 80 pieces.
The pitch is 7.50 mm.
The IEC rated current is 41 A; the UL rated current is 37 A.
The IEC rated voltage is 1000 V; the UL rated voltage is 600 V.
Mounting onto the PCB is THT solder connection (through-hole).
The clamping range is 0.25 - 6 mm², corresponding to AWG 24 - AWG 8.
-40°C to 120°C.
The insulation material is Wemid (PA) with UL 94 V-0 flammability rating.
