Mfr Part #:

242184

Mfr Name: Amphenol RF

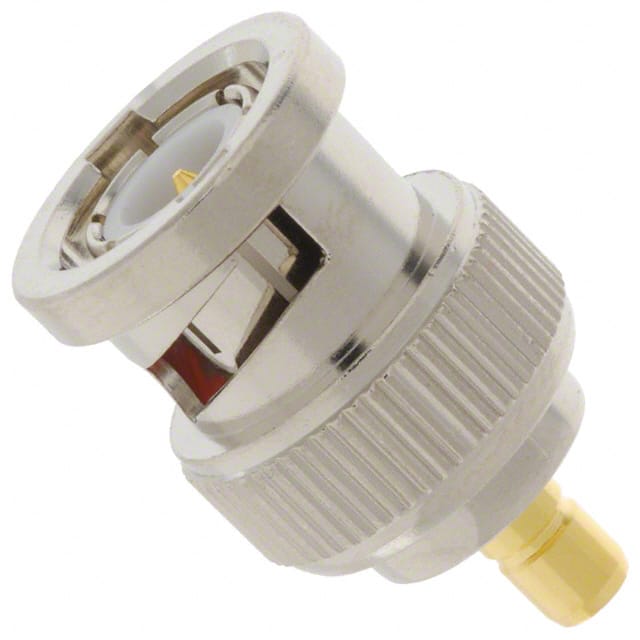

CONN ADAPT BNC PLUG TO SMB JACK

Stock on Request

242184 Description

Short technical summary and product information.

CONN ADAPT BNC PLUG TO SMB JACK

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

5404-1501-000

Radiall

BNC / SMB STRAIGHT PLUG/JACK MAL

5404-7501-000

Radiall

BNC / SMB STRAIGHT PLUG/JACK MAL

Account

Category	Coaxial Connector (RF) Adapters
Manufacturer Name	Amphenol RF
Adapter Series	BNC to SMB
Adapter Type	Plug to Jack
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	SMB Jack, Male Pin
Fastening Type	Bayonet Lock, Snap-On
Frequency	4 GHz
Impedance	50Ohm
Mounting Type	Free Hanging (In-Line)
Style	Straight
