| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adapter Series | |
| Adapter Type | |
| Body Material | |
| Body Style | |
| Center Contact Plating | |
| Center Gender | |
| Contact Material | |
| Conversion Type | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Gasket Material | |
| Impedance | |
| Insulator Material | |
| Interface Standard | |
| Mounting Type | |
| Storage Temperature | |
| Style | |
| Temperature Range | |
| Termination Style |

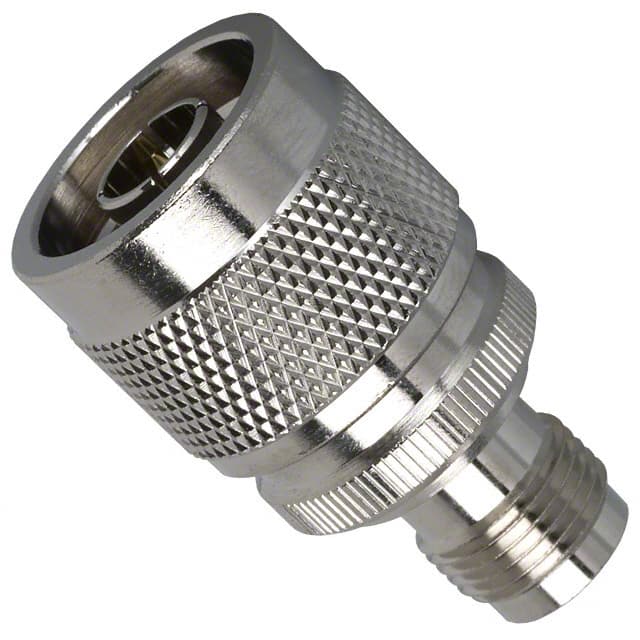

The Amphenol RF 242130 is a between-series coaxial adapter that converts an N plug (male pin) to a TNC jack (female socket). It is designed for 50 Ohm systems and operates from DC to 11 GHz, making it suitable for a wide range of RF applications including telecommunications, test equipment, and wireless infrastructure.
The adapter features a straight body style with threaded couplings on both ends for secure connections. It is constructed with a brass body (nickel plated), phosphor bronze center contact (gold plated), PTFE insulator, and silicone rubber gasket. The adapter meets MIL-STD-348 interface standards and has a dielectric withstanding voltage of 500 VRMS minimum and a durability of 500 mating cycles minimum.
The free hanging (in-line) mounting style allows for easy integration into cable assemblies. The operating temperature range is -65°C to 165°C, ensuring reliable performance in harsh environments. The gold-plated center contact provides low contact resistance and excellent signal integrity.
50 Ohms.
11 GHz.
It is a between-series adapter from N plug (male pin) to TNC jack (female socket).
Brass with nickel plating.
-65°C to 165°C.
500 cycles minimum.
500 VRMS minimum.
