| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,100 pcs
|
1100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Failure Rate | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

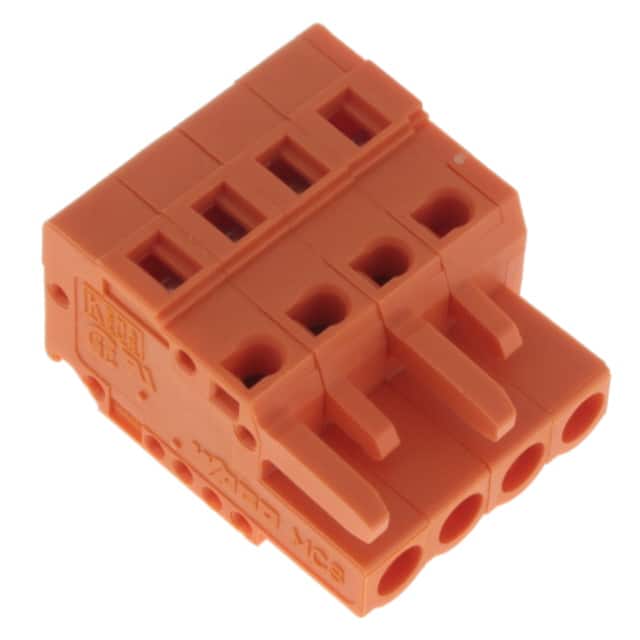

The Wago 231-304/026-000 is a 1-conductor female connector from the MCS MIDI Classic series. It features 4 positions with a 5.08 mm pitch and uses the CAGE CLAMP® spring cage termination technology for fast, maintenance-free wire connection. The plug accepts wire cross-sections from 0.08 mm² to 2.5 mm² with a strip length of 8-9 mm.
Rated at 15 A (UL) / 16 A (IEC) and 600 V (UL 1977), this connector is suitable for industrial control and power distribution applications. The operating temperature range is -60°C to 85°C. The orange housing includes retention latches on the non-wire side for secure mating.
The free-hanging (in-line) mounting style and 180° wire entry simplify panel wiring. The CAGE CLAMP® spring cage termination requires no special tools and accommodates solid, stranded, and fine-stranded conductors without ferrule preparation.
It has 4 positions.
The pitch is 5.08 mm (0.200").
The current rating is 15 A (UL) / 16 A (IEC). The voltage rating is 600 V (UL 1977) and 320 V (IEC Cat III/Poll 3).
Free hanging (in-line) mounting.
It accepts wire cross-sections from 0.08 mm² to 2.5 mm² with a strip length of 8-9 mm.
-60°C to 85°C.
CAGE CLAMP® spring cage (screwless) termination.
