| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

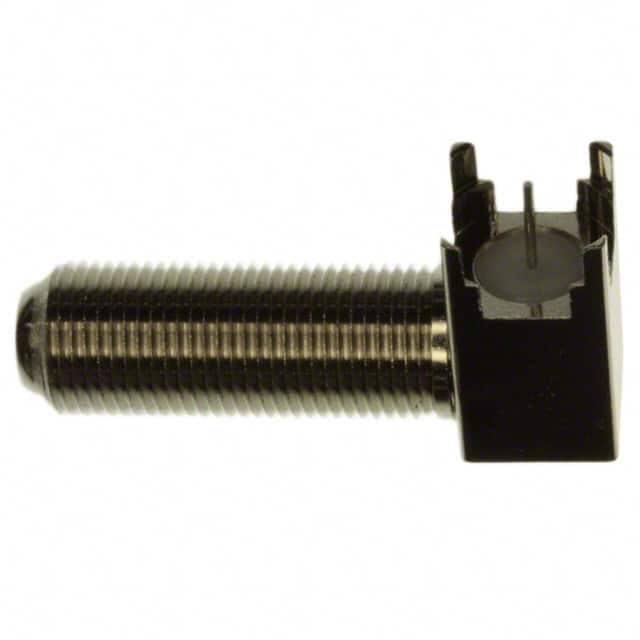

The Amphenol RF 222128-10 is a coaxial connector assembly designed for RF applications requiring 75 Ohm impedance. It is an F type receptacle with a female socket contact, supporting frequencies up to 2 GHz.
The connector features a panel mount, through hole, right angle configuration with bulkhead mounting via a front side nut. The fastening type is threaded, ensuring secure connections. Both the contact and shield terminations are solder type, providing reliable electrical and mechanical joints.
The center contact is made of beryllium copper and brass, and the housing is silver in color. This single-port connector is suitable for use in cable television, broadband, and other RF communication systems where 75 Ohm characteristic impedance is required.
The connector style is F Type.
The impedance is 75 Ohms.
The maximum frequency rating is 2 GHz.
The mounting type is Panel Mount, Through Hole, Right Angle with a Bulkhead - Front Side Nut mounting feature.
Both the contact termination and shield termination are solder type.
The connector has 1 port.
The center contact material is Beryllium Copper and Brass.
