| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:36:42 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Ground Clip Material | |
| Housing Material | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| SVHC Present | |
| Termination Style | |
| Weight |

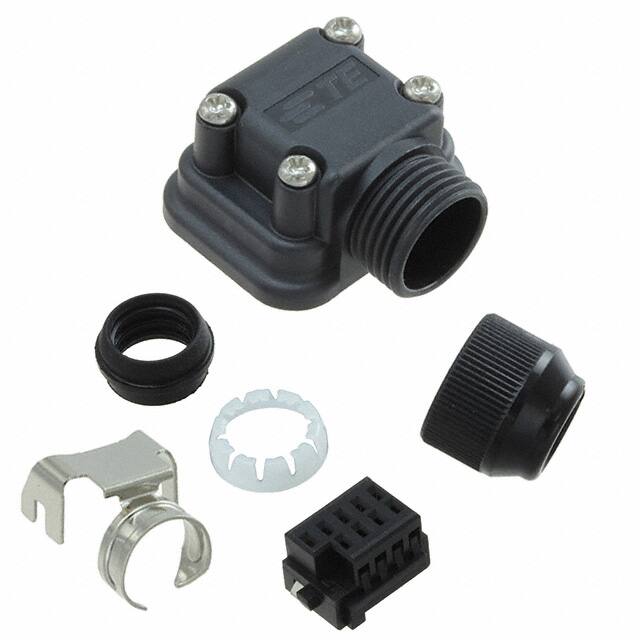

The TE Connectivity 2174054-1 is an 8-position rectangular connector housing designed as a receptacle for female socket contacts. It is part of an encoder cable I/O kit and is supplied without contacts. The housing features a threaded fastening mechanism for secure mating and a crimp termination style for reliable wire attachment. It supports free hanging (in-line) and right angle mounting configurations.
The housing is constructed from polyester resin, with phosphor bronze contacts and a steel, nickel-plated ground clip. It includes a cable clamp and a cap (cover) for protection. The operating temperature range is -30°C to 105°C, and the unit weighs approximately 6.09 grams.
This housing is suitable for applications requiring a robust, free-hanging connector solution, such as encoder cable assemblies in industrial automation. The threaded fastening ensures vibration resistance, while the crimp termination allows for field-installable wiring.
8 positions.
Free hanging (in-line), right angle.
Threaded.
-30°C to 105°C.
Polyester resin housing, phosphor bronze contacts, steel nickel-plated ground clip.
Crimp termination.
Cable clamp and cap (cover).
