| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Termination | |
| Termination Style |

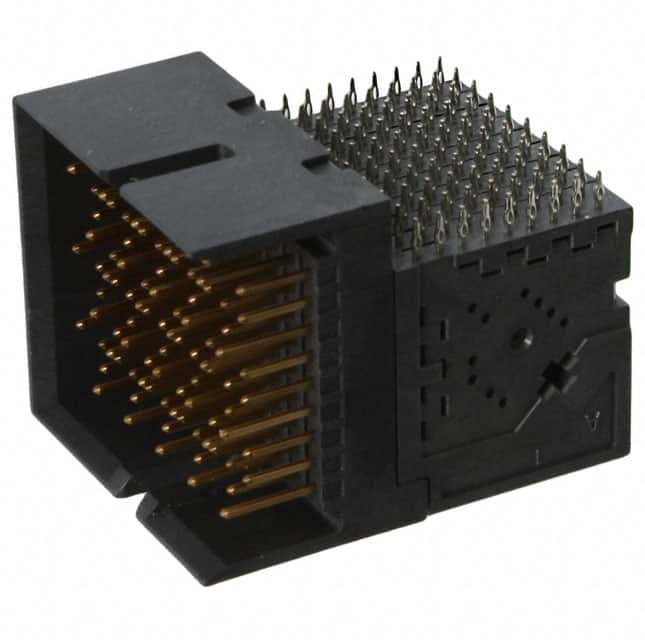

The TE Connectivity 2102317-1 is a specialized backplane connector designed for daughtercard applications. It features a header with male pins, offering 90 positions arranged in 9 rows and 10 columns. The connector supports board edge, through hole, and right angle mounting, providing flexibility for various PCB layouts.
Termination is achieved via press-fit, ensuring a reliable and solderless connection. The contacts are finished with gold (50µin / 1.27µm) for excellent conductivity and corrosion resistance. The connector is shielded to reduce electromagnetic interference, and the housing is black in color.
This connector is suitable for high-density signal routing in backplane systems, commonly used in telecommunications, data networking, and industrial equipment. All positions are loaded, and the design is optimized for daughtercard-to-backplane interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $56.50 | $56.50 |
| 110+ | $43.89 | $43.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
90 positions.
Board edge, through hole, right angle.
Press-fit.
Gold, 50µin (1.27µm).
Yes, it is shielded.
9 rows and 10 columns.
Daughtercard.
